When laying corrugated iron on wood sheathing use galvanized iron nails and lead washers. The advantage in using lead washers is that they make a tight joint and prevent leaking and rusting at the nail hole; the washer being soft it easily shapes itself to any curve. In Fig. 233 is shown how these washers are used; A shows the full size nail and washer. When laying, commence at the left hand corner of the eave and end of the building. Continue laying to the ridge by lapping the second sheet over the first 4 inches, the left-hand edge being finished by means of a gable band G, formed as shown in Fig. 234, into which the corrugated sheet B is well bedded in roofer's cement C. When it is not desired to use this gable band the sheet must be well secured at the edge to keep the wind from raising the sheets from the roof in a storm, as at A in Fig. 230.

Laying Corrugated Roofing 0900255

Fig. 233.

Should the gable have a fire wall, then let the sheets A butt against the wall and flash with corrugated flashing as shown in Fig. 235, over which the regular cap or counter flashing is placed as explained in connection with Fig. 227. Should the ridge of the roof A butt against a wall, as shown at B in Fig. 230, then an end-wall flashing is used as is shown in Fig. 236 which must also be capped, by either using cap flashing or allowing the corrugated siding to overlap this end-wall flashing as would be the case at B in Fig. 230. Now commence the second course at the eaves, giving one and one half corrugations for side lap, being careful that the side corrugations center each other exactly and nail with washers as shown in Fig. 237. Nail at every other corrugation at end laps, and at about every 6 inches at side laps, nailing through top of corrugation as shown in Fig. 237. Continue laying in this manner until the roof is covered.

Laying Corrugated Roofing 0900256

Fig. 234.

Laying Corrugated Roofing 0900257

Fig. 235.

The same rule is to be observed in regard to laps and flashing if the corrugated iron were to be fastened to iron purlins, and the method of fastening to the iron frames would be accomplished as shown in Figs. 238 to 240 inclusive. Assuming that steel structures are to be covered, as shown in Figs. 230 and 231, then let A in Fig. 238 be the iron rafter, B the cross angles on which the sheets D are laid, then by means of the clip or clamp C, which is made from hoop iron and bent around the angle B, the sheets are riveted in position. In Fig. 239 is shown another form of clamp, which is bent over the bottom of the angle iron.

Laying Corrugated Roofing 0900258

Fig. 236.

Laying Corrugated Roofing 0900259

Fig. 237.

Fig. 240 shows still another method, where the clamp F is riveted to the sheet B at E, then turned around the angle A at D. To avoid having the storm drive in between the corrugated opening at the eaves, corrugated wood filler is used as shown in Fig. 241. This keeps out the snow and sleet. On iron framing this is made of pressed metal.

Laying Corrugated Roofing 0900260

Fig. 238.

Laying Corrugated Roofing 0900261

Fig. 239.

Another form of corrugated iron roofing is shown in Fig. 242. This is put down with cleats in a manner similar to standing seam roofing.

If there are hips on the roof, the corrugated iron should be carefully cut and the hip covered with sheet lead. This is best done by having a wooden cove or filler placed on the hip, against which the roofing butts.

Sheet lead is then formed over this wooden core and into the corrugations, and fastened by means of wood screws through the lead cap into the wooden core.

The lead being soft, it can be worked into any desired shape.

When a valley occurs in a hipped roof, form from plain sheet iron a valley as shown in Fig. 243, being sure to give it two coats of paint before laying, and make it from 24-inch wide sheets, bending up 12 inches on each side. Fit it in the valley, and cut the corrugated iron to fit the required angle. Then lap the corrugated iron over the valley from 6 to 8 inches.

When a chimney is to be flashed, as shown in Fig. 244, use plain iron, bending up and flashing into the chimney joints, and allowing the flashing to turn up under the corrugated iron at the top about 12 inches and over the corrugated iron at the bottom about the same distance. At the side the flashing should have the shape of the corrugated iron and receive a lap of about 8 inches, the entire flashing being well bedded in roofer's cement. When a water-tight joint is required around a smoke stack, as shown in Fig. 245, the corrugated iron is first cut out as shown, then a flashing built around one half the upper part of the stack to keep the water from entering inside. This is best done by using heavy sheet lead and riveting it to the sheets, using strips of similar corrugated iron as a washer to avoid damaging the lead. Before riveting, the flashing must be well bedded in roofer's cement and then make a beveled angle of cement to make a good joint. After this upright flashing is in position a collar is set over the same and fastened to the stack by means of an iron ring bolted and made tight as shown. Cement is used to make a watertight joint around the stack. This construction gives room for the stack to sway and allows the heat to escape.

Laying Corrugated Roofing 0900262

Fig. 240.

Laying Corrugated Roofing 0900263

Fig. 241.

Laying Corrugated Roofing 0900264

Fig. 242.

Sometimes the end-wall flashing shown in Fig. 236 can be used to good advantage in building the upright flashing in Fig. 245. Where the corrugated iron meets at the ridge, as at D and D in Figs. 230 and 231, a wooden core is placed in position as explained in connection with the hip ridge, and an angle ridge, pressed by dealers who furnish the corrugated iron, is placed over the ridge as shown in Fig. 246. When a ridge roll is required, the shape shown in Fig. 247 is employed.

Laying Corrugated Roofing 0900265

Fig. 243.

FRONT AND REAR VIEWS OF RESIDENCE OF MRS. H. M. COBB, MAGNOLIA DRIVE, CLEVELAND, OHIO

FRONT AND REAR VIEWS OF RESIDENCE OF MRS. H. M. COBB, MAGNOLIA DRIVE, CLEVELAND, OHIO.

Watterson & Schneider, Architects, Cleveland, Ohio.

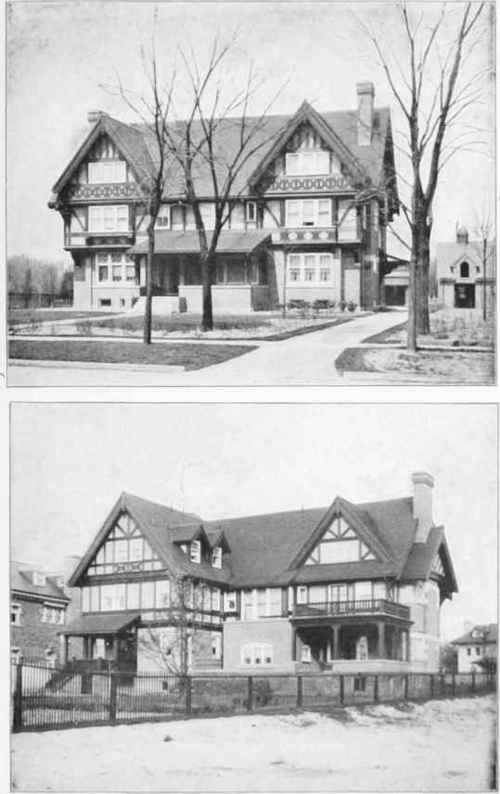

FRONT AND REAR VIEW OF RESIDENCE OF MR. H. T. LOOMIS, MAGNOLIA DRIVE CLEVELAND, OHIO

FRONT AND REAR VIEW OF RESIDENCE OF MR. H. T. LOOMIS, MAGNOLIA DRIVE CLEVELAND, OHIO.

Watterson & Schneider, Architects, Cleveland, Ohio.

Cost about $35,000. First Story Walls of McCausland Brick, Made at Akron, Ohio. Roofs of Combination Red Tile.

Laying Corrugated Roofing 0900268

Fig. 244.

Laying Corrugated Roofing 0900269

Fig. 245.

These ridges are fastened direct to the roof sheets by means of riveting or bolting.
