The principal bulk of the atmosphere is nitrogen, which exists uniformly diffused with oxygen and carbonic acid gas. This element is practically inert in all processes of combustion or respiration. It is not affected in composition, either by passing through a furnace during combustion or through the lungs in the process of respiration. Its action is to render the oxygen less active and to absorb some part of the heat produced by the process of oxidation.

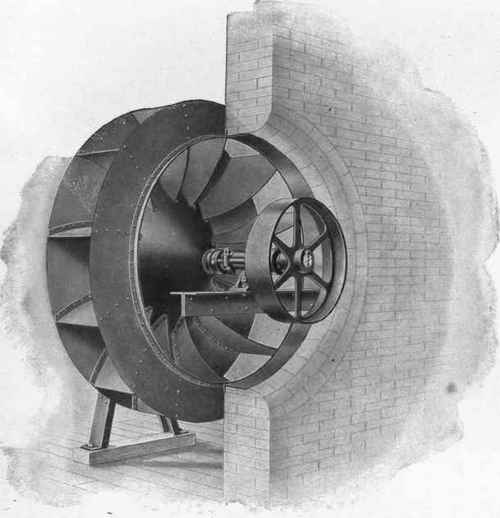

CONE EXHAUST FAN, INLET SIDE.

CONE EXHAUST FAN, INLET SIDE.

American Blower Co.

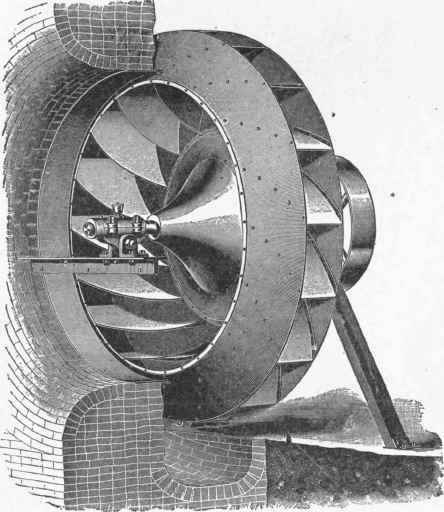

Nitrogen 100025

Fig. 20.

Carbonic Acid Gas is of itself only a neutral constituent of the atmosphere, like nitrogen, and contrary to the general impression its presence in moderately large quantities (if uncombined with other substances) is neither disagreeable nor especially harmful. Its presence in the air, however, provided for respiration, decreases the readiness with which the carbon of the blood unites with the oxygen of the air, and therefore, when present in sufficient quantity may cause indirectly, not only serious, but fatal results.

The real harm of a vitiated atmosphere is caused by its other constituent gases and by the minute organisms which are thrown off in the process of respiration. It is known, however, that these other impurities exist in fixed proportion to the amount of carbonic acid present in an atmosphere vitiated by respiration. Therefore, as the relative proportion of carbonic acid may be easily determined by experiment, the fixing of a standard limit of the amount in which it may be allowed, also limits the amounts of other impurities which are found in combination with it.

Nitrogen 100026

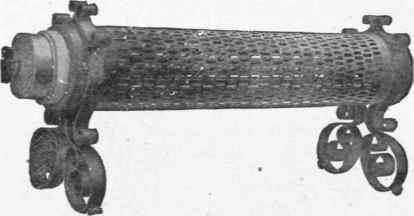

Fig. 21.

When carbonic acid is present in excess of 10 parts in 10,000 parts of air, a feeling of weariness and stuffiness, generally accompanied by a headache, will be experienced; while with even 8 parts in 10,000 parts a room would be considered close. For general considerations of ventilation the limit should be placed at. 6 to 7 parts in 10,000 thus allowing an increase of 2 to 3 parts over that present in outdoor air which may be considered to contain four parts in 10,000 under ordinary conditions.

Nitrogen 100027

Fig. 22.
