-ROMAN -USE - OF- ORDER-ARCH-PIER.

Study Of The Orders Architecture Of The Romans Par 0800130

Fig 99.

This use of the Order produces an effect very different from that of the one or two examples of the use of attached columns already existing in Greek architecture, although it is probable that these may have suggested the application of the column to the face of a plain wall; a method of which the Romans had already availed themselves in the Temple of Fortuna Virilis at Rome. This example may easily have been copied from the similar use of the Order in the large Temple of Jupiter Olympus at Agrigentum, or in the Monument of Lysicrates at Athens.

In both these Greek structures the columns are apparently planted against the face of a connecting curtain wall. As a matter of fact, the columns are entire in both these buildings, the wall itself being built up between and behind them, with the face hollowed out so as to receive the shaft, thus suggesting the addition of the wall at a later period as a screen between the columns without affecting the lintel principle upon which the building was probably first designed. In the Temple of Jupiter Olympus, the addition of this wall was probably made necessary by the fact that the tremendous scale of the building made the span red by the lintel of a length oO great to be carried safely in this fashion, and so the wall was introduced as an additional method of support. Possibly something of this feeling may have caused the use of the wall between the columns in the Monument of Lysicrates, though for different reasons. The plan of this monument being circular, it may have been thought that the overhanging projection of the entablature between the supporting columns would weaken the lintel, either actually or apparently, so that it might require additional support at its point of greatest projection.

HOUSE IN WASHINGTON, D. C.

HOUSE IN WASHINGTON, D. C.

Wood, Donn & Doming, Architects, Washington, D. C. Doric Colonial Front.

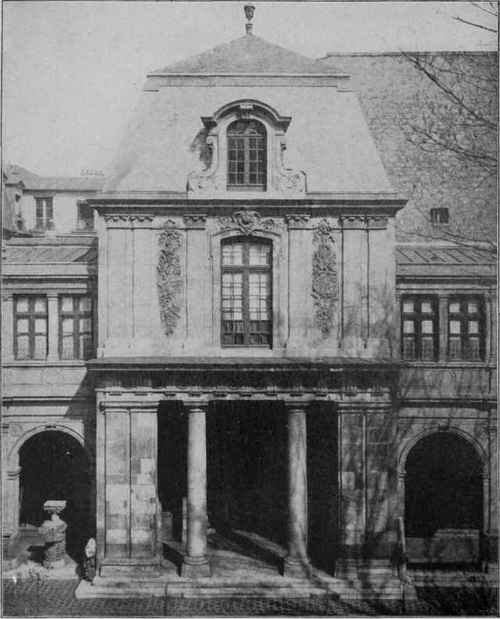

PAVILION IN COURTYARD OF THE MUSEE CARNAVALET. PARIS, FRANCE

PAVILION IN COURTYARD OF THE MUSEE CARNAVALET. PARIS, FRANCE.

Finished in Seventeenth Century.

But the difference between the use of the column in this fashion, attached to a plain curtain wall, and its use placed against the face of a pier between arches, as the column was employed in the arcades of the Tabularium and later in the Theater of Marcellus and the Colosseum, suggests a great advance in the architectural effectivenesss of its use and in its close identification with the more constructive architecture of the Romans, even though there is but slight difference in the principle of its application.

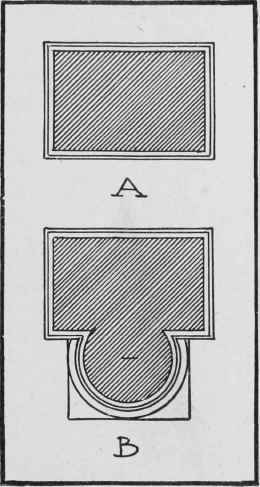

Fig. 100, A Roman Pier. Engaged Column and Pier.

Fig. 100, A-Roman Pier. Engaged Column and Pier.

But in any event, the column, as thus used by the Romans in their architecture, can seldom be considered as an important structural feature. It does not even act as a buttress to resist the thrust exerted upon the exterior walls by the interior arches roofing the rooms or corridors.

The Romans must first have used a continuous and purely structural arcade of arches turned against each other and resting on heavy masonry piers, as in their aqueducts (Fig. 101 ). This undoubtedly proved monotonous in effect; and so the colonnade was simply grafted upon its surface, the columns being each placed against the center of a pier. The colonnade shown in Fig. 99, drawn according to the rule of Vignola, would be more pleasing if the plain surface in the bay between the three-quarter-engaged columns-below the entablature and above the line of the necking-had been omitted, thus allowing the lower line of the entablature to be dropped to the height of the horizontal line shown directly over the archivolt or backhand of the arch.

Fig. 101. Pont du Gard, Nimes.

Fig. 101. Pont du Gard, Nimes.

Use of Superimposed Orders. Aside from their assimilation of the arch principle from the Etruscan builders, and their use of the Greek-developed Order as a mere ornament applied on the face of an arch-supported wall, the Romans further varied-in one important particular-their employment of the Classic Order. Where the Greeks, almost without exception, had used one column-even of gigantic size where necessary-to carry from a low basement or stylo-bate to the entablature that acted as the crowning member of the building, as well as of the Order used on its exterior facade; the Romans did not hesitate to superimpose one Order upon another, making two or more stories, one over the other, each carrying a complete Order upon its face. The derivation of this idea is possibly traceable to some of the Greek temples, in which a second Order was sometimes used on the interior to support the gabled roof covering the structure, and, incidentally, to admit of a higher central aisle. For this purpose they used either small columns, as at Psestum (the Order is here the same in style and treatment as the one below, being merely smaller in scale), or, more often, a human figure placed upon the face of a plain pier. The idea of superposition, as developed by the Romans, soon became an important part of their architectural treatment; and in the later revival of Roman architecture which occurred during the Renaissance, this method of treatment was frequently used.

Theater of Marcellus, Rome. Showing Roman use of engaged and superimposed columns.

Theater of Marcellus, Rome. Showing Roman use of engaged and superimposed columns.

Use of Orders for Secular Buildings. The Romans, in their use of the Order, employed it much more generally than did their predecessors; for, while the Greeks restricted its use substantially to the temples erected for the worship of their various gods, the Romans did not hesitate to use the same architectural forms for buildings devoted solely to pleasure or for the dwellings of their rulers.
