934. To Find Magnification Of A Telephoto System

To Find Magnification Of A Telephoto System. To find the magnification of a telephoto system, divide the distance of the negative lens from the ground-glass by the focal length of the negative lens, and add 1. Expressed in formula form:

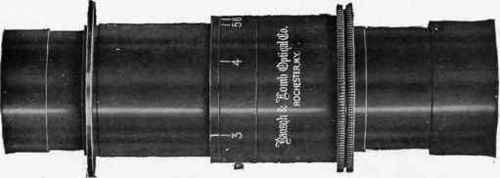

Illustration No. 93   B. & L. Telephoto Lens See Paragraph No. 930

Illustration No. 93 - B. & L. Telephoto Lens See Paragraph No. 930.

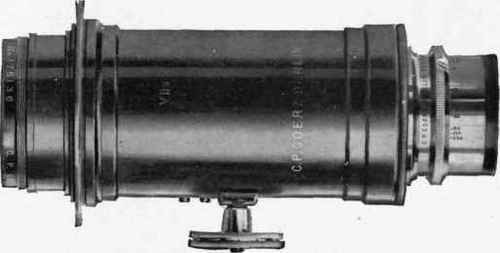

Illustration No. 94   Goerz Telephoto Lens See Paragraph No. 930

Illustration No. 94 - Goerz Telephoto Lens See Paragraph No. 930.

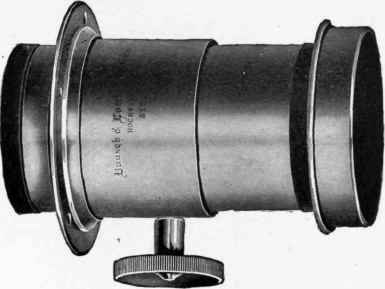

Illustration No. 100   B. & L. Projection Lens See Paragraph No. 946

Illustration No. 100 - B. & L. Projection Lens See Paragraph No. 946.

Illustration No. 97   Telephoto Demonstration See Paragraph No. 931

Illustration No. 97 - Telephoto Demonstration See Paragraph No. 931.

M =( E / f2) + 1

Thus, if the distance from the negative lens to the ground-glass is 12 inches, and the focus of the negative lens 3 inches, we have:

M = (12 / 3) + 1=5.

935. Exposure In Telephotography

Exposure In Telephotography. The greater the magnification, the less the rapidity of the telephoto lens. To find the speed or F. number of the telephoto system, divide the F. number of the positive lens by the magnification. Thus, if the positive is being worked at f.ll with 4 times magnification, the real rapidity is f.44, and exposure must be given on this basis.

936. The exposures obtained by above rule are indicative, and not imperative, and are often greatly modified by the condition of the atmosphere. As a rule an exposure shorter by about one-third than the theoretical one will be found correct in the United States.
