The Flat Turret Chucking Lathe

Ust as the original Flat Turret Lathe was the first machine to be equipped with an outfit of conveniently adjustable tools for bar work, so now with the present machine we have provided a universal outfit of tools for chuck work.

The many illustrations of chucking tools and conditions under which they work will carry conviction that we have not fallen short of our established record, to use only the most practical and efficient tools held under the most rigid control and in conveniently adjustable holders. When we say chuck work, we do not mean merely the process of boring a rough hole in a piece of work to be reamed elsewhere and after that to be pushed on an arbor and turned in some other machine, but we mean finishing the work shown by our accompanying sketches, in which every possible cut is taken that can be taken, and still leave means for holding the piece.

The Flat Turret Chucking Lathe 64The Flat Turret Chucking Lathe 65

Front View of the 14-inch Swing Flat Turret Chucking Lathe with Cross-feeding Head. This same machine with automatic chuck and roller feed and tools for bar work is called the 3 x 36-inch. When our 2 x 24-inch Flat Turret Lathe is equipped for chucking, it is called the 12-inch Flat Turret Chucking Lathe with Cross-feeding Head

The Flat Turret Chucking Lathe 66

Just as in the past we restricted our working dimensions to a 2-inch spindle hole, so now in this machine we restrict our chucking swing to 12 and 14 inches; but in doing so, we furnish a machine that cannot be equaled by any other machine.

The simplicity of our entire scheme makes it possible to retain for our entire range of work our claim made for the original machine, viz., we can make one piece quicker than it is possible to make it in an engine lathe, and if two pieces or more are required our systems of stops make a convenient and quick means for accurate duplication.

The ten stops for the cross-feed head, combined with the dozen stops for the turret, and the turning and boring tools, all of the simplest and stiffest construction, make this machine ready to begin work as soon as it is supplied with the driving power. It is not only ready to begin work on the work for which it may have been purchased, but

The Flat Turret Chucking Lathe 67

Back View of the 14-inch Swing Flat Turret Chucking Lathe with Cross-feeding Head. This same machine with automatic chuck and roller feed and tools for bar work is called the 3 x 36-inch. When our 2 x 24-inch Flat Turret Lathe is equipped for chucking, it is called the 12-inch Flat Turret Chucking Lathe with Cross-feeding Head.

The Flat Turret Chucking Lathe 68

Front Views of Turret with Chucking Outfit Tools in Position

Showing Large Boring Bar

Showing Large Boring Bar.

The Flat Turret Chucking Lathe 70

2 x 24-inch Flat Turret Lathe (12-inch Chucking Machine)

Showing a piece of work in the chuck and one of the boring tools in a holder on the turret

The Flat Turret Chucking Lathe 71Showing Stability of Work and Tool Control

Showing Stability of Work and Tool Control.

it is supplied with a set of tools that will take care of any similar piece any hour or any day in the future ; and, notwithstanding this universality, adaptability and efficiency, our tools and work are brought together under the most rigid control and under ideal conditions never before attained in a lathe.

All the shears and running surfaces are protected from the dust of cast-iron, so that the machine may be used for either steel work in which oil is used, or for cast-iron chucking.

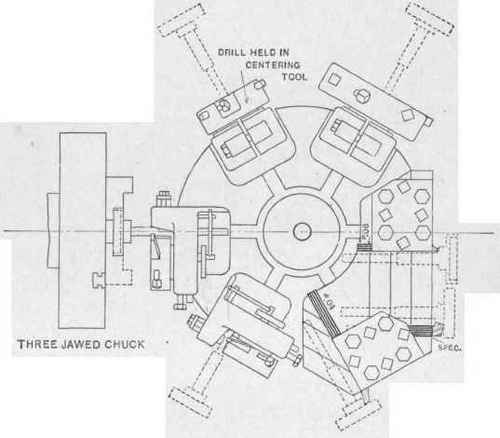

The drawings on pages 140 to 189, inclusive, are intended to show some of the results of giving the lathe head stock a cross travel. For compactness the work is shown at each turret tool, but it will be understood that the turret turns to present each tool to the work and that the travel of the turret carriage lengthwise, combined with the cross travel of the work-carrying head stock and the turning of the turret, bring all the necessary changes of position of work and tools.

Machine Steel Finished In 7 Minutes

Machine Steel Finished In 7 Minutes.

Tool Steel Finished In 4 Minutes

Tool Steel Finished In 4 Minutes.

Machine Steel Finished In 24 Minutes

Machine Steel Finished In 24 Minutes.

Machine Steel Finished In 20 Minutes

Machine Steel Finished In 20 Minutes.

Finished from Bar in One Operation

Machine Steel Finished In 14 Minutes

Machine Steel Finished In 14 Minutes.

Machine Steel Finished In 14 Minutes

Machine Steel Finished In 14 Minutes.

Machine Steel Finished In 18 Minutes

Machine Steel Finished In 18 Minutes.

Finished from Bar in One Operation

Machine Steel Finished In 30 Minutes

Machine Steel Finished In 30 Minutes.

Machine Steel Finished In 15 Minutes

Machine Steel Finished In 15 Minutes.

Machine Steel Finished In 18 Minutes

Machine Steel Finished In 18 Minutes.

Finished from Bar in One Operation

Machine Steel Finished In 38 Minutes

Machine Steel Finished In 38 Minutes.

Finished from Bar in Two Operations

Machine Steel Finished In 8 Minutes

Machine Steel Finished In 8 Minutes.

Machine Steel Finished In 36 Minutes

Machine Steel Finished In 36 Minutes.

Finished from Bar in One Operation

Machine Steel Finished In 30 Minutes

Machine Steel Finished In 30 Minutes.

Machine Steel Finished In 33 Minutes

Machine Steel Finished In 33 Minutes.

Finished from Bar in Two Operations

•45

The Flat Turret Chucking Lathe 88The Flat Turret Chucking Lathe 89

Finished in One Operation.

Cast Iron Finished In 10 Minutes

Cast Iron Finished In 10 Minutes.

The Flat Turret Chucking Lathe 91

Finished in One Operation.

Steel Casting Finished In 10 Minutes

Steel Casting Finished In 10 Minutes.

The Flat Turret Chucking Lathe 93

Finished in One Operation.

Cast Iron Finished In 8 Minutes

Cast Iron Finished In 8 Minutes.

The Flat Turret Chucking Lathe 95

Finished in One Operation.

The Flat Turret Chucking Lathe 96

Finished in One Operation.

Cast Iron Finished In 9 Minutes

Cast Iron Finished In 9 Minutes.

Bronze Finished In 12 Minutes

Bronze Finished In 12 Minutes.

The Flat Turret Chucking Lathe 99

Finished in One Operation.

The Flat Turret Chucking Lathe 100

Finished in One Operation.

Cast Iron Finished In 8 Minutes

Cast Iron Finished In 8 Minutes.

Finished in Two Operations - First Operation

Machine Steel Forging Finished All Over In 39 Minutes

Machine Steel Forging Finished All Over In 39 Minutes.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

The Flat Turret Chucking Lathe 105Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Bronze. Finished All Over In 18 Minutes

Bronze. Finished All Over In 18 Minutes

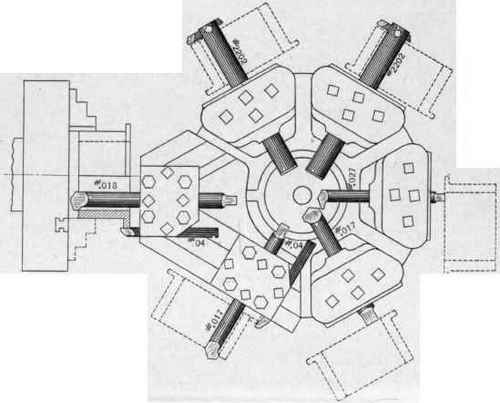

Three Jawed Chuck. Finished In Two Operations   First Operation

Three Jawed Chuck. Finished In Two Operations - First Operation

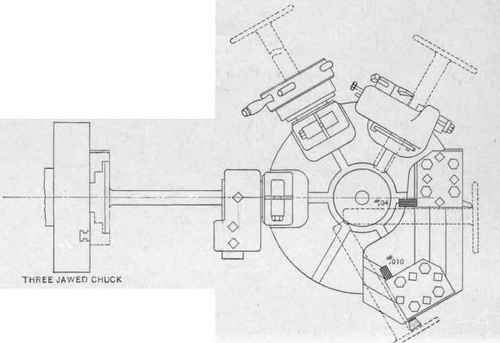

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Bronze. Finished All Over In 12 Minutes

Bronze. Finished All Over In 12 Minutes

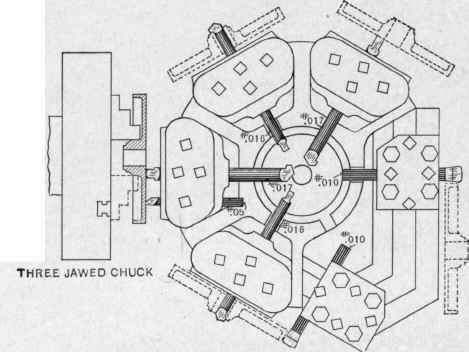

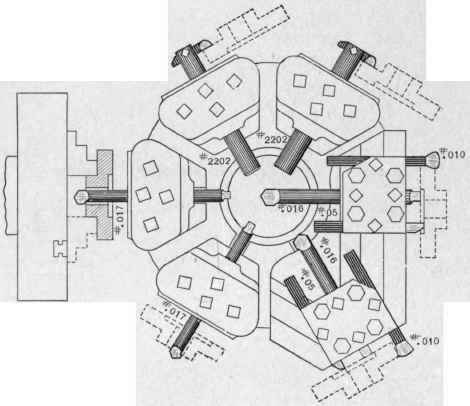

Three Jawed Chuck. Finished in Two Operations   First Operation

Three Jawed Chuck. Finished in Two Operations - First Operation

Face Plate. Finished in Two Operations   Second Operation

Face Plate. Finished in Two Operations - Second Operation

Three Jawed Chuck. Finished in Two Operations   First Operation

Three Jawed Chuck. Finished in Two Operations - First Operation

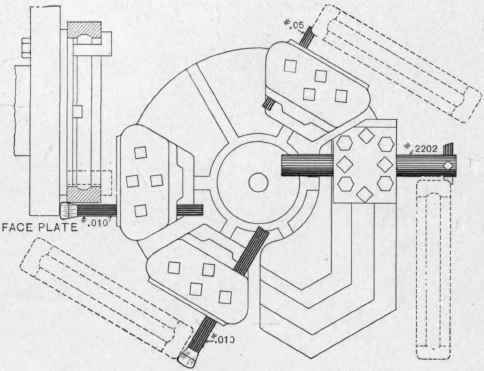

Face Plate. Finished in Two Operations   Second Operation

Face Plate. Finished in Two Operations - Second Operation

Finished All Over From MILD Steel RING IN 21 MINUTES

Finished All Over From MILD Steel RING IN 21 MINUTES.

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Finished All Over From MILD Steel RING IN 20 MINUTES

Finished All Over From MILD Steel RING IN 20 MINUTES.

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Finished All Over From MILD Steel RING IN 32 MINUTES.

Finished All Over From MILD Steel RING IN 32 MINUTES..

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Finished All Over

Finished All Over.

From MILD Steel RING IN 22 MINUTES

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Steel Casting Finished In 20 Minutes

Steel Casting Finished In 20 Minutes.

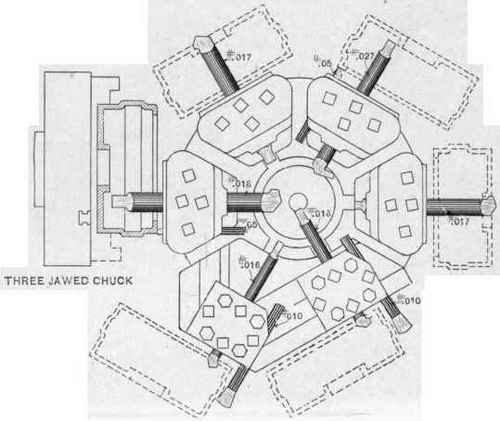

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

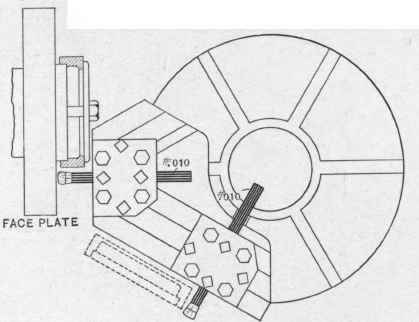

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

The Flat Turret Chucking Lathe 130

Finished All Over From

Machine Steel In 28 Minutes

Cast Iron In 12 Minutes

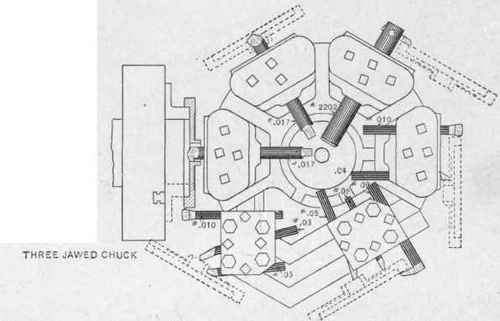

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Machine Steel Forging

Machine Steel Forging.

Finished All Over In 25 Minutes

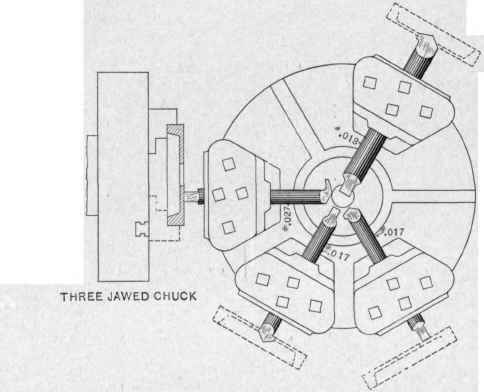

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Cast Iron Finished All Over In 12 Minutes

Cast Iron Finished All Over In 12 Minutes.

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Cast Iron Finished In 15 Minutes

Cast Iron Finished In 15 Minutes.

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Cast Iron

Cast Iron.

Finished All Over In 20 Minutes

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Steel Forging Finished In 19 Minutes

Steel Forging Finished In 19 Minutes.

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Cast Iron Finished In 30 Minutes

Cast Iron Finished In 30 Minutes.

Three Jawed Chuck

Three Jawed Chuck.

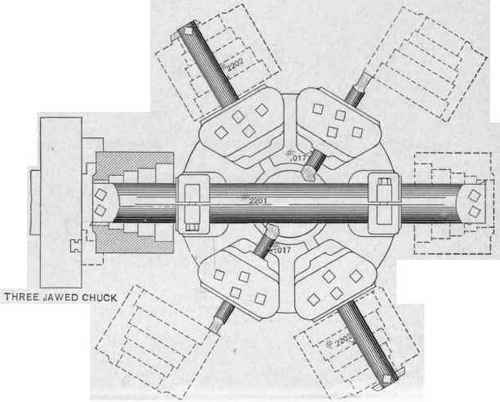

Finished in Two Operations - First Operation

Face Plate

Face Plate.

Finished in Two Operations - Second Operation

Cast Iron Finished All Over

Cast Iron Finished All Over.

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Cast Iron Finished In 24 Minutes

Cast Iron Finished In 24 Minutes.

Finished in Two Operations   First Operation

Finished in Two Operations - First Operation.

Finished in Two Operations   Second Operation

Finished in Two Operations - Second Operation.

Details Of Outfit Of Tools For Bar Work Up To 2 1/4-Inch Bar

The Machine One 2 x 24 Flat Turret Lathe, ======== Cross-feed Head, Single Drive, four Tool Holders, three Stock Supports, Oil Pump and Piping, Friction Countershaft, Cast-iron Table for holding tools, etc., and suitable Wrenches.

Parts for handling the bar of stock Automatic

'======================= Chuck and

Roller Feed. Fifteen sets of Jaws for chuck, holding all sizes from 1/2 inch to 2 1/4 inches in diameter, inclusive.

Turning Tools Four Quick-opening Turners, ad-============ justable to all sizes from 2 1/4 inches down.

One Cross Slide for holding cutting-off and forming tools.

One Pointing Tool.

Screw Thread Cutting One 1 1/4-inch Automatic

============== (opening) Die, with fifteen sets of chasers for cutting all U. S. S. threads 3/8 of an inch to 1 1/4 inches in diameter, inclusive, by sixteenths.

All of the above may be briefly described as 2 x 24 Flat Turret Lathe, with the Automatic Die Outfit (Outfit D).
