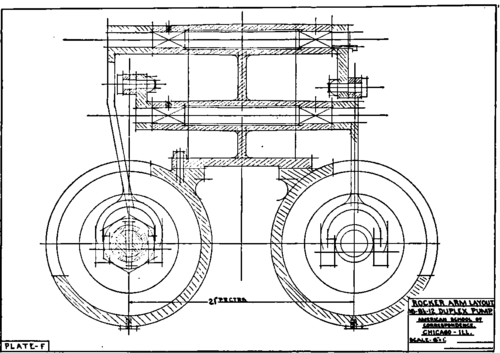

These plates represent the layout of the valve motion, and are necessary in order to find the length of the levers and rocker arms. It will be noticed in Plate F that the valve stem of one side of the pump is controlled by the movement of the piston rod of the other side, the proper direction of motion being given to the valve by placing the rocker shaft above or below the valve stem as required. By reference to Plate A it will be further noticed that the nuts on the valve stem inside the chest, which abut against the faces of the lug on the valve, do not rest against the faces of the lug in the position shown, but have considerable lost motion. This lost motion is one of the essential features of the valve motion of a duplex pump, and permits the valve to remain at rest for a short period at the end of the stroke, though the valve stem may have reversed its motion and begun its return stroke. When this lost motion is taken up by the movement of the stem and the nuts abut against the lug on the valve, the valve will move, and from this point to the end of the stroke be positively controlled by the motion of the stem. At the end of the stroke the stem will reverse, when the lost motion will again permit the valve to rest for the same period as at the other end, and then move on as before. The time of rest of the valve, and consequently the pistons and plungers, is approximately one-third the period of the stroke. This means that the piston on one side travels one-third of its stroke before it picks up, through the valve levers, the valve on the other side. During the second third of its travel it is bringing the valve to the point of opening. During the last third of its travel it is opening the port, wider and wider, to steam. Thus the opposite piston will start when the first piston has covered two-thirds of its stroke, and there will be only one-third of the stroke when both pistons are moving at the same time.

General Specifications 600131General Specifications 600132

This relative period of rest to motion is not always made in this exact ratio, but is at least approximate to it. The period of rest at the end of the stroke is to allow the water end to adjust itself quietly to the reversal of motion about to take place at the end of the stroke. When the plunger stops, the water valves must be given time to seat themselves, and the flow of water through the passages checked. It is much easier to start the flow in the opposite direction if the reversal of plunger motion is not instantaneous. Hence for handling long columns of water, which, once in motion, tend by considerable energy to remain in motion, the duplex pump by this peculiar delayed action has been found to be well suited.

Travel Of Valve Stem

It will be found that for complete uncovering of port, and motion divisible into thirds as described, the travel of the valve stem should be three times the width of port, or 3 X 7/8 = 2 5/8 inches. A little more than this is allowed, and the travel made 2) inches in this case. Referring to Plate E, this distance is laid off as shown by the two limiting vertical lines across the line of the valve stem, the central vertical line of mid-position being drawn. The problem then is to find such centers for the rocker arms that the travel of the piston-rod spool will, through proper leverage, produce travel of the valve stem between these two vertical lines. This can readily be done by a few trials, the only requirement for this case being that the extremes of the arc of swing of both piston-rod lever and rocker arm shall be equally above and below the center of piston rod and valve stem, respectively. The greatest possible travel of the piston-rod spool, 12 inches, is usually laid out in this case, not the nominal 12 inches.

Length Of Levers And Arms

From this layout the lengths of the levers and arms may be scaled off for the detail drawing, also the location of the rocker-arm centers. The student has the former given him on Plate G, but the latter, which is necessary for the development of Plate H, must be determined by his own layout. Plate F must also be laid out before developing the cross section of the valve bracket.

Stuffing Boxes

The design of stuffing boxes for both steam and water ends, and the length of the yoke, should be determined next. A safe method of assuming clearance between the spool and the gland studs at the end of the stroke is to imagine that the gland stud nuts have accidentally worked off the studs, so that they are about to drop. They are thus shown by dotted lines on Plate E. A good clearance, say inch to inch, is then allowed, and the gland drawn in. The length of the gland is determined by the number of rings of packing necessary in the stuffing box; it is usually provided that the gland may compress the packing to about one-half its original depth before bringing up against the face of the box. Packing 5/8-inch square will do for this size of piston rod, hence the faces of the yoke are easily determined, and its detail, with the stuffing boxes, proceeded with as on Plate H. The length of yoke may be brought to an even figure; and proceeding on the above plan the length can be conveniently made in even inches without any fractions; viz, 28 inches.

It will be noticed that the stuffing-box flanges serve to center the yoke in line with the steam and water cylinders. This is a desirable feature of construction, and forms a simple and easy method for lining up the steam and water ends.
