(Requiring Exercises 5, 12, 8, 9, 10, 3, 4, 15, 44, 32, 29, 14, 13, 3, 5, 41, And 42.)

This is made partly in hard and partly in soft wood.

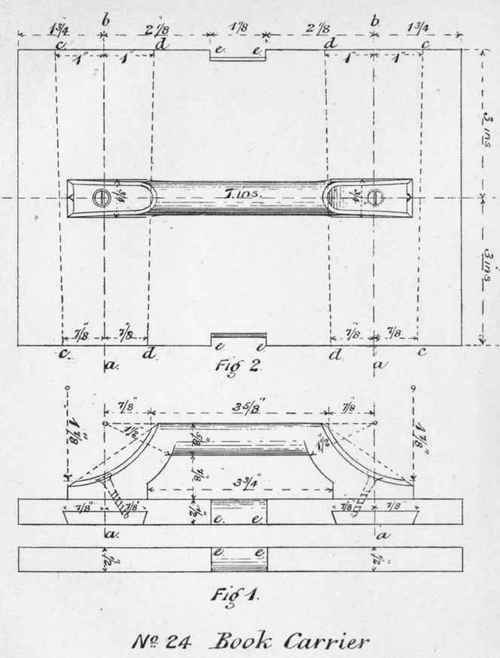

For the handle, cut from Beech a piece 8 in. long, 2 in. wide, and 7/8 in. thick. Plane one side and one edge. Then gauge-mark for 1 1/2 in. wide and 3/4 in. thick, and plane the rough side and edge down to each gauge-mark. Then draw on one side the diagram of the handle shown in Fig. 1 of drawings No. 24. With the turning saw, cut to the inner and outer lines of the diagram. With the plane, round the top of the handle, as shown in Fig. 1, and, with the knife, round and smooth the other parts, taking care that all the right angles are strictly maintained. Then, with an 1/8-in. centre-bit, drill a hole for each screw, as shown in the Fig., and, with the knife, counter-sink for the heads of the screws. With the knife, make the chamfers at the corners of the curves, as shown in Fig. 2, and finish completely with scraper and sandpaper.

The handle being thus finished, cut from Deal a piece 24 in. long, 6 1/2 in. wide, and 5/8 in. thick, and plane one side and one edge at right angles. Gauge-mark for 6 in. wide, and 1/2 in. thick, and plane the rough side and edge down to the gauge-marks. Square one end, measuring from that end, saw off at 9 in. On the larger piece remaining, draw the lines a b and a b in the positions shown in Fig. 2 ; then, with the compasses, set off the spaces from a to c and from a to c, b to c and b to c, a to d and a to d, b to d and b to d. Then set the gauge to half the thickness, and with it mark the edges on the four places indicated in each case from c to d. Set the bevel to the oblique line at each side of the dovetails, and transfer this bevelled line to each side at points c c c c and d d d d Then, with tenon saw, cut down each line c d to the depth of the gauge line, and, with a small chisel, remove the whole of the pieces between the nicks made by the saw. This will result in two grooves for dovetailed tongues, as shown above, a a in Fig. 1, designed to strengthen and prevent from warping the upper half of the holder.

The grooves having been thus made ready, the dovetails must be prepared. From Deal cut two pieces, each 9 in. long, 2 1/2 in. wide, and 3/4 in. thick. Plane one side of each and bevel one edge to the pitch the bevel was previously set for. Then, on the planed side, mark 2 1/4 in. at one end, 1/ 1/4 in. at the other end, and take to that width, afterwards bevelling the edge as before. Then fit each of the tongues provided, driving them tight into their places. When they fit exactly, glue the planed side and the edges, and drive them to their positions, being careful not to split off the ends. Then allow time for the glue to set, and cut off the projecting ends of the tongues and plane them and the face of the board to a level. Cut off to exact length, measuring from the lines a b. Then smooth both boards with the plane, nail them together with two small nails, and square the ends. Then gauge and nick with the saw for the recesses e e, removing the wood from each recess with the knife, so making grooves for a strap to pass round. Then screw on the handle in the manner indicated by both Figs., and finish as required with sand-paper.
