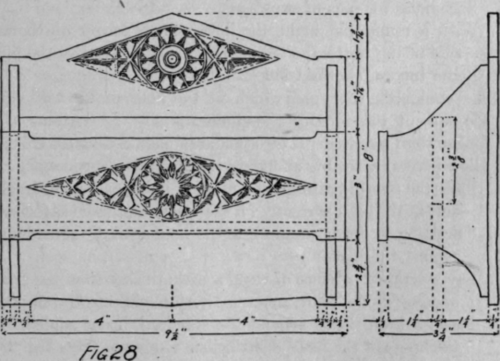

Fig. 28. Wall Pocket |
![]() |
||
![]() |
||||
![]() |
![]() |
![]() |
||
![]() |
||||
This section is from the "Handbook In Woodwork And Carpentry" book, by Charles A. King. Also available from Amazon: Handbook in woodwork and carpentry.
Wood: Poplar.
Preparatory : Same as in Fig. 1. Apply to each piece.
A. Make stock list.
B. Cut pieces for carvings first.
Exercises.
1. A. Work all pieces to required dimensions and form, designing original details where possible.
2. Plane pieces which are to be carved.
3. Draw' simple design for carving, and proceed to cut both pieces.
4. A. Plane and sandpaper the end, partition, and bottom pieces. B. Sandpaper carved front and back.
5. Nail together with 7/8" brads. Set nails.
6. Remedy defects.
7. Stain and finish. Color putty for nail holes.
