Seventy horse-power, four-cylinder motor; speed, 35 miles per hour; locomotive bell and hand-operated siren horn; boiler, 36x66 inches; suction hose, 2 lengths, 4 1/2-inch diameter; lanterns, three, fire department standard; hydrant connections; carrying capacity, four men.

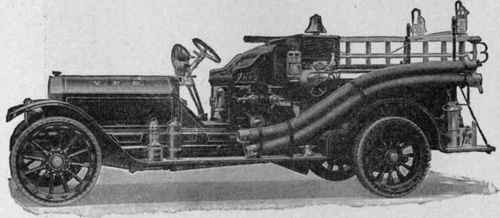

Combination Chemical Engine and Hose Car*

Combination Chemical Engine and Hose Car*.

Seventy horse-power, four-cylinder motor; speed, 60 miles per hour; hose capacity, 1,200 feet 2 1/2-inch hose; chemical cylinder, one 40-gallon capacity; chemical hose, 200 feet 3/4-inch chemical hose; acid receptacles, two; one 10-inch electric searchlight; locomotive bell and hand-operated siren horn; extinguishers, two 3-gallon Babcock, fire department standard; ladders, one 20-foot extension ladder, one 12-foot roof ladder with folding hooks; lanterns, four, fire department standard; axe, one, fire department standard; pike pole, one; crowbar, one of steel held by snaps; carrying capacity, seven men.

* Courtesy of American LaFrance Fire Engine Co.

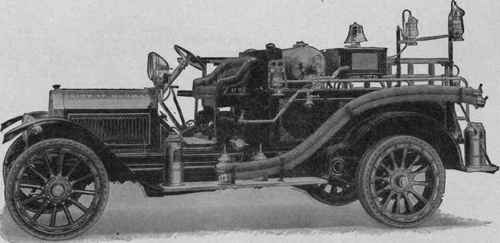

Combination Chemical and Hose Car

Combination Chemical and Hose Car.

Equipped with Junior Pump. This pump is intended to boost the pressure of the chemical tank and can also be used as an auxiliary pump. On this type of steamer the pump will deliver 250 gallons of water at 120 pounds pump pressure.

Courtesy of American LaFrance Fire Engine Co.

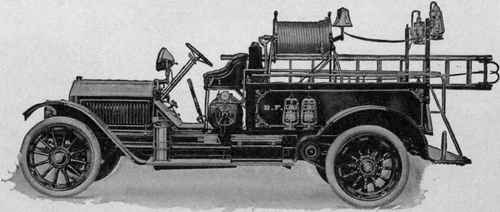

Combination Chemical Engine and Hose Car Equipped with hose reel instead of hose basket as in other types illustrated.

Combination Chemical Engine and Hose Car Equipped with hose reel instead of hose basket as in other types illustrated..

Courtesy of American LaFrance Fire Engine Co.

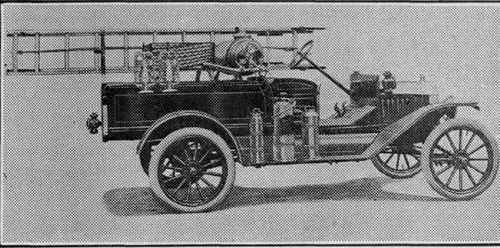

The Body of This Car has a Capacity of 800 Feet of 23 Inch Fire Hose and is also Equipped with a 40 Gallon Tank, with Chemical Hose, Fire Extinguisher and Extension Ladder.*

The Body of This Car has a Capacity of 800 Feet of 23-Inch Fire Hose and is also Equipped with a 40-Gallon Tank, with Chemical Hose, Fire Extinguisher and Extension Ladder.*.

Gasoline Two Wheel Front Drive Aerial Truck*

Gasoline Two-Wheel Front-Drive Aerial Truck*.

One hundred horse-power; six-cylinder motor; speed, 25 miles per hour; locomotive bell and hand-operated siren horn; extinguishers, two 3-gallon Babcock, fire department standard; lanterns, four, fire department standard; axes, four, fire department standard; wall picks, two; crowbars, two; shovels, two; wire cutter, one; door opener, one; tin roof cutter, one; pitchforks, two; battering ram, one; Manila rope, tackle and snatch block; pull-down hook with pole, chain and rope; rubber buckets, four; crotch poles, two; pike poles, six, assorted lengths; wire basket, one under frame; one 10-inch electric searchlight.

Gasoline Two Wheel Bevel Gear Front urive Water Tower*

Gasoline Two-Wheel Bevel-Gear Front-urive Water Tower*.

One hundred horse-power; six-cylinder motor; speed, 25 miles per hour; one 10-inch electric searchlight; locomotive bell and hand-operated siren horn; deck turret, one, mounted; nozzle tips, three for deck turret, 1 1/2-inch, 1 3/4-inch, 2-inch; three for tower nozzle, 134-inch, 1 3/4-inch, 2-inch; hose, one 35-foot length, 4-inch cotton, rubber lined; lanterns, two, fire department standard; axes, two heavy pick back, fire department standard; crowbar, one of

Steel, held by snaps. * Courtesy of American LaFrance Fire Engine Co.
