Removed from the foot by maceration a well-shaped hoof is cylindro-conical in form, and appears to the ordinary observer to consist of a box or case cast in one single piece of horn. Prolonged maceration, however, will show that the apparently single piece is divisible into three. These are known as (1) The Wall, (2) The Sole, and (3) The Frog. In addition to these, we have also an appendage or circular continuation of the frog named (4) The Periople, or Coronary Frog Band. These various divisions we will study separately.

1. The Wall is that portion of the hoof seen in front and laterally when the horse's foot is on the ground. Posteriorly, instead of being continued round the heels to complete the circle, its extremities become suddenly inflected downwards, forwards, and inwards. These inflections can only be seen with the foot lifted from the floor, and form the so-called Bars. It will be noticed, too, with the foot lifted, that the wall projects beyond the level of the other structures of the plantar surface, taking upon itself the bearing of the greatest part of the animal's weight.

The horn of the wall, viewed immediately from the front, is known as the Toe, which again is distinguished as Outside Toe or Inside Toe, according as the horn to its inner or outer aspect is indicated. The remainder of the external face of the wall, that running back to the heels, is designated the Quarters.

In the middle region of the toe, the wall following the angle of the bones is greatly oblique. This obliquity decreases as the quarters are reached, until on reaching the heels the wall is nearly upright.

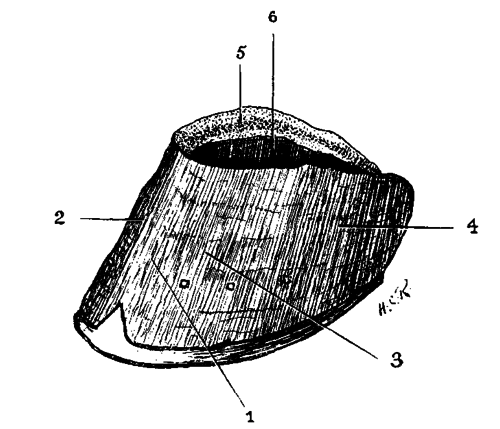

Fig. 19.   The Wall Of The Hoof

Fig. 19. - The Wall Of The Hoof. 1, The Toe; 2, Inner Toe; 3, Outside Toe; 4, The Quarter; 5, Entigeral Groove; 6, Horny Laminae.

For observation the wall offers two faces, two borders, and two extremities.

The External Face is convex from side to side, but straight from the upper to the lower border. Examined closely, it is seen to be made up of closely-arranged parallel fibres running in a straight line from the upper to the lower border, and giving the surface of the foot a finely striated appearance. In addition to these lines, which are really the horn tubules, the external face is marked by a series of rings which run horizontally from heel to heel. These are due to varying influences of food, climate, and slight or severe disease. This will be noted again in a later page. In a young and healthy horse the whole of the external face of the wall is smooth and shining. This appearance is due to a thin layer of horn, secreted independently of the wall proper, termed the periople.

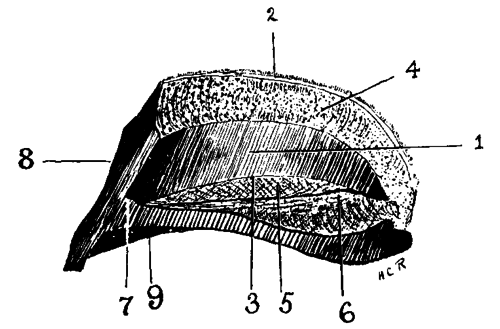

Fig. 20.   Internal Features Of The Wall, Frog, And Sole (Mesian Section Of Hoof)

Fig. 20. - Internal Features Of The Wall, Frog, And Sole (Mesian Section Of Hoof). 1, Horny Laminae Covering Internal Face Of Wall; 2, Superior Border Of Wall; 3, Junction Of Wall With Horny Sole; 4, The Cutigeral Groove; 5, The Horny Sole; 6, The Horny Frog (That Portion Of It Known As The 'Frog-Stay'); 7, Inverted V-Shaped Ridge On Wall And Sole (Known As The 'Toe-Stay'); 8, Anterior Face Of Wall; 9, Inferior Border Of Wall.

The Internal Face of the wall, that adapted to the sensitive laminae, is closely covered over its entire surface with white parallel leaves (Keraphyllae, or horn leaves, to distinguish them from the Podophyllae, or sensitive leaves). These keraphyllae dovetail intimately with the sensitive laminae, covering the os pedis. Running along the superior portion of the inner face is the Cutigeral Groove. This cavity has been mentioned before as accommodating the coronary cushion, whose shape and general contour it closely follows, being widest and deepest in front, and gradually decreasing as it proceeds backwards. It is hollowed out at the expense of the wall, and shows on its surface numberless minute openings which receive the papillae of the coronary cushion.

At the bottom of the internal face, at the point where the toe joins the sole, will be noted the before-mentioned inverted V-shaped prominence. Its position will be clearly understood when we say that it gives the appearance of having been forced there by the pressure of the toe-clip of the shoe. This will be noted again when dealing with the sole.

The Inferior Border of the wall offers little to note. It is that portion in contact with the ground, and subject to wear. A point of interest is its union with the sole. This will be noticed in a foot which has just been pared as a narrow white or faint yellow line on the inner or concave face of the wall at its lower portion. It marks the point where the horny leaves of the wall terminate and become locked with corresponding leaves of the circumference of the sole.

The Superior Border follows closely the line marked by the perioplic ring and the groove separating the latter from the coronary cushion.

The Extremities of the wall are formed by the abruptly reflected portions of the wall at the heels. Termed by some the 'Inflexural Nodes,' they are better known to us as the 'Points of the Heels.'

2. The Sole. - The sole is a thick plate of horn which, in conjunction with the bars and the frog, forms the floor of the foot. In shape it is irregularly crescentic, its posterior portion, that between the horns of the crescent, being deeply indented in a V-shaped manner to receive the frog. Its upper surface is convex, its lower concave. It may be recognised as possessing two faces and two borders.

The Superior or Internal Face is adapted to the sole of the os pedis. Its highest point, therefore, is at the point of its V-shaped indentation. From this point it slopes in every direction downwards and outwards until near the circumference. Here it curves up to form a kind of a groove in which is lodged the inferior edge of the os pedis. In the centre of its anterior portion - that is to say, at the toe - will be seen a small inverted V-shaped ridge, which is a direct continuation of the same shaped prominence before mentioned on the internal face of the wall. This Fleming has termed the toe-stay, from a notion that it serves to maintain the position of the os pedis. The whole of the superior face of the sole is covered with numerous fine punctures which receive the papillae of the sensitive sole.

The Inferior Face is more or less concave according to circumstances, its deepest part being at the point of the frog. Sloping from this point to its circumference, it becomes suddenly flat just before joining the wall. Its horn in appearance is flaky.

Fig. 21.   Inferior Aspect Of Hoof

Fig. 21. - Inferior Aspect Of Hoof. A The Inferior Face Of Horny Sole; B, Inferior Border Of The Wall; C, Body Or Cushion Of The Frog; D, Median Lacuna Of The Frog; E, Lateral Lacuna Of The Frog; F, The Bar; G, The Quarter; H, The Point Of The Frog; I The Heel.

The External Border or Circumference is intimately dovetailed with the horny laminae of the wall. At its circumference the sole, if unpared, is ordinarily as thick as the wall. This thickness is maintained for a short distance towards its centre, after which it becomes gradually more thin.

The Internal Border has the shape of an elongated V with the apex pointing forwards. It is much thinner than the external border, and, like it, is dovetailed into the horny laminae of the inflections of the wall - namely, the bars. In front of the termination of the bars it is dovetailed into the sides and point of the frog. Where unworn by contact with the ground, the horn of the sole is shed by a process of exfoliation.

3. The Frog. - Triangular or pyramidal in shape, the frog bears a close resemblance to the form of the plantar cushion, upon the lower surface of which body it is moulded. It offers for consideration two faces, two sides, a base, and a point or summit.

Fig. 22.   Hoof With The Sensitive Structures Removed

Fig. 22. - Hoof With The Sensitive Structures Removed. 1, Superior Face Of Horny Frog; 2, The Frog-Stay; 3, The Lateral Ridges Of The Frog's Superior Surface; 4, The Horny Laminae At The Inflections Of The Wall.

The Superior Face is an exact cast of the lower surface of the plantar cushion. It shows in the centre, therefore, a triangular depression, with the base of the triangle directed backwards. Posteriorly, the depression is continued as two lateral channels divided by a median ridge. The median ridge widens out as it passes backwards, forming the larger part of the posterior portion of the frog. This median ridge fits into the cleft of the plantar cushion. It serves to prevent displacement of the sensitive from the horny frog, and has been rather aptly termed the 'Frog-stay.'

The Inferior Surface is an exact reverse of the superior. The triangular depression of the superior surface is represented in the inferior surface by a triangular projection, and the ridge-like frog-stay of the upper surface is represented below by a median cleft, the Median Lacuna of the frog. The triangular projection in front of the median lacuna is the body or cushion of the frog. It is continued backwards as two ridge-like branches, which, at the points of the heels, form acute angles with the bars. On the outer side of each lateral ridge is a fissure. These are known as the Lateral Lacunae.

The Sides of the frog are flat and slightly oblique. They are closely united to the bars and to the triangular indentation in the posterior border of the sole.

The Base of the frog is formed by the extremities of its branches, which, becoming wider and more convex as they pass backwards, form two rounded, flexible, and elastic masses separated from each other by the median lacuna. These constitute the 'glomes' of the frog. They are continuous with the periople.

The Point of the Frog is situated, wedge-like, within the triangular notch in the posterior border of the sole.

4. The Periople, or Coronary Frog Band. - This is a continuation of the substance of the frog around the extreme upper surface of the hoof. It is widest at the heels over the bulbs or glomes of the frog, and gradually narrows as it reaches the front of the hoof. It is, in reality, a thin pellicle of semi-transparent horn secreted by the cells of the perioplic ring. When left untouched by the farrier's rasp it serves the purpose, by acting as a natural varnish, of protecting the horn of the wall from the effects of undue heat or moisture.
