IMPROVED DOBBY. IMPROVED DOBBY.

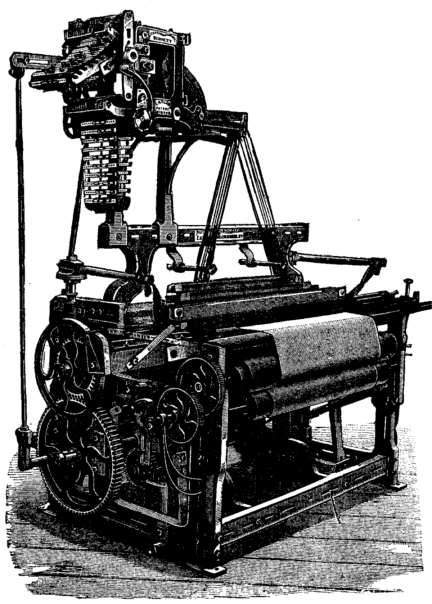

At the Manchester Royal Jubilee Exhibition, Messrs. Butterworth & Dickinson, Burnley, showed Catlow's patent dobby, which is illustrated above, as applied to a strong calico loom. This dobby is a double lift one, thus obtaining a wide shed, and the use of two lattice barrels connected by gearing so that they both revolve in the same direction. The jack lever is attached to the vertical levers, the top and bottom catches being worked respectively by the two barrels, and connected with the ends of the levers. To each of these catches a light blade spring is attached, which insures them being sprung upon the top of the knife, and thereby obtaining a certain lift. A series of wooden jacks or levers are employed, so as to give a varying lift to the front and back healds, in this way keeping the yarn in even tension, and preventing slack sheds. The healds are drawn down by means of a series of levers adjoining one another, and worked by means of a rocking bar driven from the tappet shaft. When the shed is being formed, the jacks are pushed down until it is fully open, and the warp is thus drawn down with the same certainty as the upward movement is made. - Industries.
