This house stands 50 by 40 feet on the ground. The front door opens from the veranda into a hall, 24 by 14 feet, in which is a flight of stairs leading to the chambers above. On the left a door leads into a library, or business room, 17 by 17 feet, lighted by three windows. A fire place is inserted in the outer wall. Another door leads into a side hall, six feet wide, which separates the library from the dining-room, which is also 17 by 17 feet in area, lighted and accommodated with a fireplace like the other, with a door leading into it from the side hall, and another door at the further right hand corner leading into the rear hall, or entry.

On the right of the chief entrance hall, opposite the library, a door opens into the parlor or drawing-room, 23 by 19 feet in area,lighted by three windows, and having a fireplace in the side wall. A door leads from the rear side of the parlor into a commodious nursery, or family bedroom, 19 by 16 feet in size, lighted by a window in each outer wall. A fire place is also inserted on the same line as in the parlor. From the nursery a door leads into and through a large closet, 9 by 7 feet, into the rear hall. This closet may also be used as a sleeping room for the children, or a confidential servant maid, or nurse, or devoted to the storage of bed linen for family use. Further on, adjoining, is another closet, 7 by 6 feet, opening from the rear hall, and lighted by a window.

Leading from the outer door of the rear hall is a covered passage six feet wide, 16 feet long, and one and a half stories high, leading to the kitchen offices, and lighted by a window on the left, with a door opening iu the same side beyond, on the side front of the establishment. On the right, opposite, a door leads on to the kitchen porch, which is six feet wide, passing on to the bath room and water closet, in the far rear. At the end of the connecting passage from the main dwelling, a door opens into the kitchen, which is 24 by 18 feet in size, accommodated with two windows looking on to the porch just described. At one end is an open fireplace with a cooking range on one side, and an oven on the other. At the left of the entrance door is a large, commodious store room and pantry, 12 by 9 feet, lighted by a window; and adjoining it, (and may be connected with it by a door, if necessary,) a kitchen closet of the same size, also connected by a corresponding door from the opposite corner of the kitchen. Between these doors is a flight of stairs leading to the sleeping rooms above, and a cellar passage beneath them. In the farther right corner of the kitchen a door leads into a smaller closet, 8 by 6 feet, lighted by a small window looking on to the rear porch at the end.

A door at the rear of the kitchen leads out into the porch of the wash room beyond, which is six feet wide, and another door into the wash room itself, which is 20 by 16 feet, and furnished with a chimney and boilers. A window looks out on the extreme right hand, and two windows on to the porch in front. A door opens from its rear wall into the wood house, 32 by 12 feet, which stands open on two sides, supported by posts, and under the extended roof of the wash room and its porch just mentioned. A servants' water-closet is attached to the extreme right corner of the wood house, by way of lean-to.

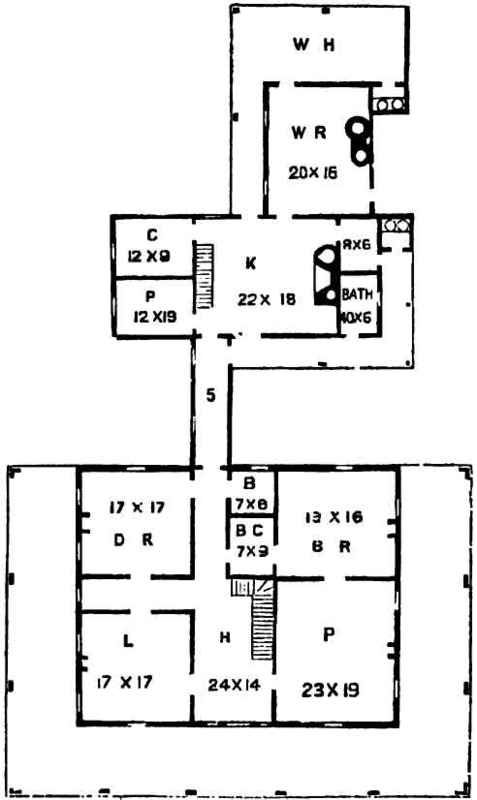

GROUND PLAN.

GROUND PLAN.

The bath room is 10 by 6 feet in area, and supplied with water from the kitchen boilers adjoining. The water-closet beyond is 6 feet square, and architecturally, in its roof, may be made a fitting termination to that of the porch leading to it.

The main flight of stairs in the entrance hall leads on to a broad landing in the spacious upper hall, from which doors pass into the several chambers, which may be duly accommodated with closets. The passage connecting with the upper story of the servants' offices, opens from the rear section of this upper hall, and by the flight of rear stairs communicates with the kitchen and out-buildings. A garret flight of steps may be made in the rear section of the main upper hall, by which that apartment may be reached, and the upper deck of the roof ascended.

The sleeping-rooms of the kitchen may be divided off as convenience may dictate, and the entire structure thus appropriated to every accommodation which a well regulated family need require.

The carringe-house is 48 by 24 feet in size, with a projection of five feet on the entrance front, the door of which leads both into the carriage-room and stables. On the right is a bed-room 10 by 8 feet, for the grooms, lighted by a window, and beyond are six stalls for horses, with a window in the rear wall beyond them. A flight of stairs leads to the hay loft above. In the rear of the carriage-room is a harness-room, 12 by 4 feet, and a granary of the same size, each lighted by a window. If farther attachments be required for the accommodation of outbuilding conveniences, they may be continued indefinitely in the rear.

CHAMBER PLAN.

CHAMBER PLAN.

CARRIAGE HOUSE.

CARRIAGE-HOUSE.
