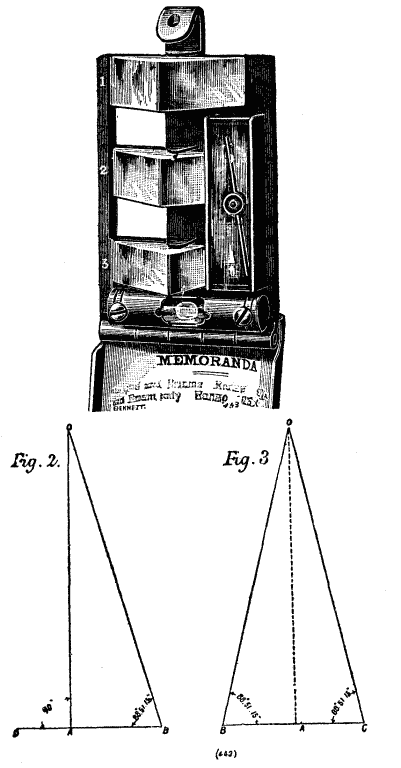

Colonel Weldon has recently considerably modified and improved his ingenious range finder, and we illustrate herewith from Engineering the form in which it is now manufactured. It consists of a metal box, the lid of which is shown open in the engraving, and on this lid are fitted three prisms which are the essential constituents of the instrument. When the lid is closed, these, with the compass and level, also attached to the lid, lie inside the metal box, and are thus thoroughly protected. The upper prism marked 1 is a right-angled one and is mounted with the right angle outward; looking into the left-hand corner of this prism one will see in it, by double reflection, objects lying on one's right hand. Below this is a second prism with a principal angle of 88 deg. 51 min. 15 sec., and below this a third with a principal angle of 74 deg. 53 min. 15 sec.

A level and a compass are also mounted on the lid as shown. To use the instrument the observer stands so that the object the range of which is required lies on his right hand, and looking into the left-hand corner of the upper prism views it there by double reflection from the internal faces of the prism. At the same time looking through the opening shown in the lid below the prism he selects some object, which appears nearly in line with the image seen in the prism. He then shifts his position till these two images coincide, in which case lines joining him with the two objects will make right angles with each other. In Fig. 2, O is the object whose range is required, D the object seen by direct vision, and A the position of the observer. The observer now marks his position on the ground, and shifting the instrument looks into the left-hand corner of the second prism, when he again sees the image of the object, whose range is required, by double reflection, but lying now to the right of the object, D. He then retires, keeping in line with A and D, till he reaches B, when the two images again coincide; the lines joining them and the observer now make an angle of 88 deg. 51 min. 15 sec.

Then in the triangle, OBA, OA = tan 88 deg. 51 min. 15 sec. X A B = 50 AB. The length AB is easily paced, and the distance OA is 50 times this length.

A longer base, and probably greater accuracy, can be obtained by using the second prism only, as indicated in Fig. 3, in which case the distance of the object is 25 times the distance BC. This second prism is, however, best adapted for predicting the range of moving objects. Three observers are required. Two of them have finders, while the other measures the distance between the two. The first two observers separate, and No. 2 takes a position such that the object is reflected to one side of observer No. 1, whom he views by direct vision. As the object continues to move, its image gets nearer and nearer No. 1, who during the whole of the time moves a little to one side or the other, so as to keep the image of the object constantly in line with No. 2. Just as the image of the object gets very near No. 1, No. 2 calls out "Ready," the distance between the two observers is taken by the third, and when the image of the object actually falls on No. 1 its distance is just 25 times the distance between them, and the guns set to this range are fired by word of command from No. 2.

By using the third prism in conjunction with the second a still longer base of one-fourth the distance of the object can be employed. The range finder can also be used as a depleidoscope for transit observations. For this purpose it is mounted on a block of wood by means of elastic band and leveled by the level on its lid, being at the same time set in the meridian of the place. The lid is opened to make an angle with the horizon equal to the latitude of the place of observation. On looking into the upper prism two images of the sun will be seen on each side of the apex of the prism, which gradually approach each other as the sun nears the meridian, and finally coincide as it passes it, the time of which being noted gives the longitude of the place.

Extensive trials of the instrument have been made both in this country and in India, which agree in showing that the average error in using the instrument is about 2½ to 3½ per cent.
