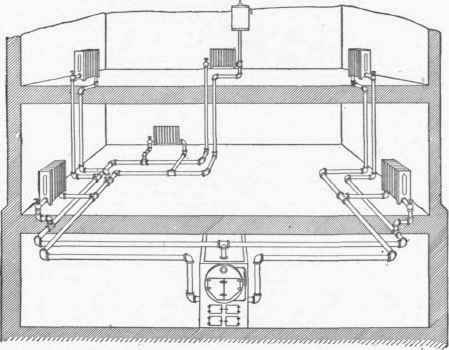

A system of hot water heating should produce a perfect circulation of water from the heater to the radiating surface, and thence back to the heater through the returns. The system of piping usually employed for hot water heating is shown in Fig. 32. In this arrangement the main and branches have an inclination upward from the heater; the returns are parallel to the mains and have an inclination downward toward the heater, and connect with it at the lowest point. The flow pipes or risers are taken from the tops of the mains and may supply one or more radiators as required. The return risers or drops are connected with the return mains in a similar manner. In this system great care must be taken to produce a nearly equal resistance to flow in all of the branches so that each radiator may receive its full supply of water. It will always be found that the principal current of heated water will take the path of least resistance, and that a small obstruction or irregularity in the piping is sufficient to interfere greatly with the amount of heat received in the different parts of the same system.

System Of Piping 1000111

Fig. 81.

System Of Piping 1000112

Fig. 32.
