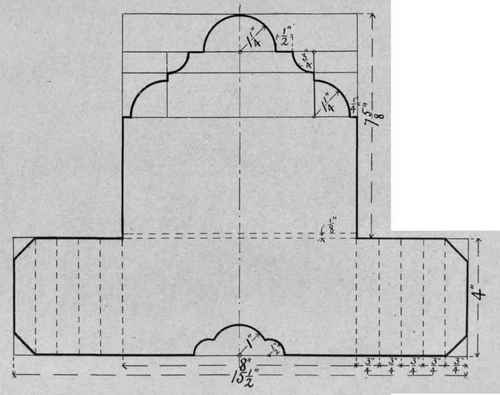

1. A piece of cardboard 9½" X 8½" is required for the model.
2. Construct square 5".
3. Find centre of one of the sides and decribe large semicircle.
4. Set off on the circumference two spaces 1½" each from each end of diameter.
5. Connect adjoining points. 6. Erect perpendiculars from these points to each of the lines just drawn.
7. Measure off 1½" on the perpendiculars and connect.
8. Make drawing of laps and the part forming the back.


No. 24. Paper Holder. Second Year,

No. 25. House. Second Year.
