Our readers are well aware that water as found naturally is never absolutely free from dissolved impurities; and in ordinary cases it contains solid impurities derived both from the inorganic and organic kingdoms, together with gaseous substances; these latter being generally derived from the atmosphere.
By far the purest water which occurs in nature is rain-water, and if this be collected in a secluded district, and after the air has been well washed by previous rain, its purity is remarkable; the extraneous matter consisting of little else than a trace of carbonic acid and other gases dissolved from the air. In fact, such water is far purer than any distilled water to be obtained in commerce. The case is very different when the rain-water is collected in a town or densely populated district, more especially if the water has been allowed to flow over dirty roofs. The black and foully-smelling liquid popularly known as soft water is so rich in carbonaceous and organic constituents as to be of very limited use to the photographer; but by taking the precaution of fitting up a simple automatic shunt for diverting the stream until the roofs have been thoroughly washed, it becomes possible to insure a good supply of clean and serviceable soft water, even in London. Several forms of shunt have been devised, some of these being so complex as to offer every prospect of speedy disorganization; but a simple and efficient apparatus is figured in Engineering by a correspondent who signs himself "Millwright," and as we have thoroughly proved the value of an apparatus which is practically identical, we reproduce the substance of his communication.
A gentleman of Newcastle, a retired banker, having tried various filters to purify the rain-water collected on the roof of his house, at length had the idea to allow no water to run into the cistern until the roof had been well washed. After first putting up a hard-worked valve, the arrangement as sketched below has been hit upon. Now Newcastle is a very smoky place, and yet my friend gets water as pure as gin, and almost absolutely free from any smack of soot.

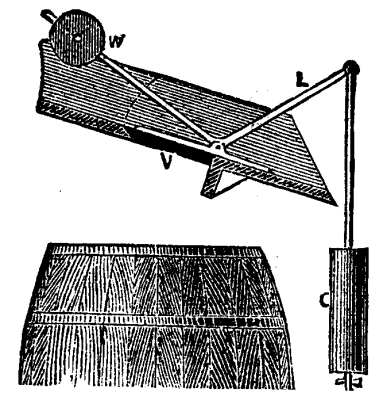

The sketch explains itself. The weight, W, and the angle of the lever, L, are such, that when the valve, V, is once opened it goes full open. A small hole in the can C, acts like a cataract, and brings matters to a normal state very soon after the rain ceases.
The proper action of the apparatus can only be insured by a careful adjustment of the weight, W, the angle through which the valve opens, and the magnitude of the vessel, C. It is an advantage to make the vessel, C, somewhat broader in proportion to its height than represented, and to provide it with a movable strainer placed about half way down. This tends to protect the cataract hole, and any accumulation of leaves and dirt can be removed once in six months or so. Clean soft water is valuable to the photographer in very many cases. Iron developer (wet plate) free from chlorides will ordinarily remain effective on the plate much longer than when chlorides are present, and the pyrogallic solution for dry-plate work will keep good for along time if made with soft water, while the lime which is present in hard water causes the pyrogallic acid to oxidize with considerable rapidity. Negatives that have been developed with oxalate developer often become covered with a very unsightly veil of calcium oxalate when rinsed with hard water, and something of a similar character occasionally occurs in the case of silver prints which are transferred directly from the exposure frame to impure water.
To the carbon printer clean rain-water is of considerable value, as he can develop much more rapidly with soft water than with hard water; or, what comes to the same thing, he can dissolve away his superfluous gelatine at a lower temperature than would otherwise be necessary.

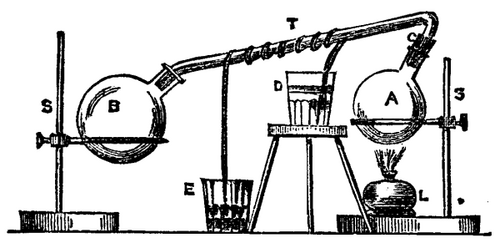

The cleanest rain-water which can ordinarily be collected in a town is not sufficiently pure to be used with advantage in the preparation of the nitrate bath, it being advisable to use the purest distilled water for this purpose; and in many cases it is well to carefully distill water for the bath in a glass apparatus of the kind figured below.
A, thin glass flask serving as a retort. The tube, T, is fitted air-tight to the flask by a cork, C.
B, receiver into which the tube, T, fits quite loosely.
D, water vessel intended to keep the spiral of lamp wick, which is shown as surrounding T, in a moist condition. This wick acts as a siphon, and water is gradually drawn over into the lower receptacle, E.
L, spirit lamp, which may, in many cases, be advantageously replaced by a Bunsen burner.

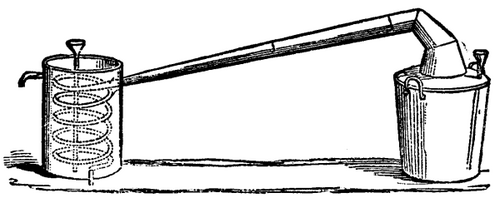

A small metal still, provided with a tin condensing worm, is, however, a more generally serviceable arrangement, and if ordinary precautions are taken to make sure that the worm tube is clean, the resulting distilled water will be nearly as pure as that distilled in glass vessels.
Such a still as that figured below can be heated conveniently over an ordinary kitchen fire, and should find a place among the appliances of every photographer. Distilled water should always be used in the preparation of emulsion, as the impurities of ordinary water may often introduce disturbing conditions.--Photographic News.
