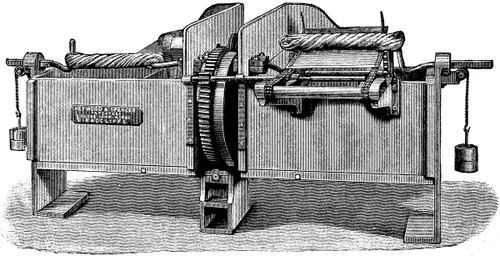

We give a view of a hank sizing machine by Messrs. Heywood & Spencer, of Radcliffe, near Manchester. The machine is also suitable for fancy dyeing. It is well known, says the Textile Manufacturer, that when hanks are wrung by hand, not only is the labor very severe, but in dyeing it is scarcely possible to obtain even colors, and, furthermore, the production is limited by the capabilities of the man. The machine we illustrate is intended to perform the heavy part of the work with greater expedition and with more certainty than could be relied upon with hand labor. The illustration represents the machine that we inspected. Its construction seems of the simplest character. It consists of two vats, between which is placed the gearing for driving the hooks. The large wheel in this gear, although it always runs in one direction, contains internal segments, which fall into gear alternately with pinions on the shanks of the hooks. The motion is a simple one, and it appeared to us to be perfectly reliable, and not liable to get out of order. The action is as follows: The attendant lifts the hank out of the vat and places it on the hooks.

The hook connected to the gearing then commences to turn; it puts in two, two and a half, three, or more twists into the hank and remains stationary for a few seconds to allow an interval for the sizer to "wipe off" the excess of size, that is, to run his hand along the twisted hank. This done, the hook commences to revolve the reverse way, until the twists are taken out of the hank. It is then removed, either by lifting off by hand or by the apparatus shown, attached to the right hand side. This arrangement consists of a lattice, carrying two arms that, at the proper moment, lift the hank off the hooks on to the lattice proper, by which it is carried away, and dropped upon a barrow to be taken to the drying stove. In sizing, a double operation is customary; the first is called running, and the second, finishing. In the machine shown, running is carried on one side simultaneously with finishing in the other, or, if required, running may be carried on on both sides. If desired, the lifting off motion is attached to both running and finishing sides, and also the roller partly seen on the left hand for running the hanks through the size.

The machine we saw was doing about 600 bundles per day at running and at finishing, but the makers claim the production with a double machine to be at the rate of about 36 10 lb. bundles per hour (at finishing), wrung in 1½ lb. wringers (or I½ lb. of yarn at a time), or at running at the rate of 45 bundles in 2 lb. wringers. The distance between the hooks is easily adjusted to the length or size of hanks, and altogether the machine seems one that is worth the attention of the trade.
