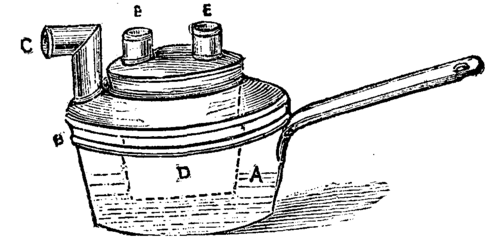

The accompanying drawing represents a simple but effective apparatus for drying flour and ascertaining the quantity of water contained therein. It consists of four pieces, the whole being made of block tin. A is a simple saucepan for containing the water. B is the lid, which only partially covers the top of the pan, to which it is fixed by two slots, a hole being left in the middle for the placing of the vessel which contains the flour to be operated upon, and is dropped in in the same way as the pan containing the glue is let into an ordinary glue pot. C is the spout, which serves as an outlet for the steam arising from the boiling water. D is the vessel in which the flour is placed to be experimented upon; and EE are the funnels of the lid which covers the said vessel, and which serve as escapes for the steam arising from the moisture contained in the flour.

APPARATUS FOR DRYING FLOUR

APPARATUS FOR DRYING FLOUR

Directions For Use

Partially fill the pan with water and allow it to boil. Place a given quantity of flour in the inner vessel, D, taking care first to weigh it. Subject it to the action of the boiling water until it is perfectly dry, which will be indicated by the steam ceasing to issue from the funnels. Then weigh again, and the difference in the weight will represent the quantity of moisture contained in it, dried at a temperature of 212 degrees Fahr., that of boiling water. - The Miller.
