Mortised Joint And Relish. Fig. 124.

Material: 2 pieces, 6" X 1 1/2" X 7/8".

This joint is used in joining the stiles and bottom rails of doors, panelwork, etc. If the mortise extended to the bottom of the stile, to allow the tenon to be the full width of the rail, it is plain that it would be a weak joint, therefore the relish is cut out of the rail. This joint is made by the same methods as those above described. Hold together by pin, if necessary, but do not use glue.

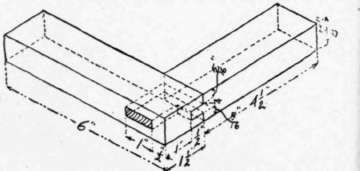

Fig. 124. - Mortised Joint with Relish.
