(Requiring Exercises 5, 7, 8, 9, 10, 11, 33, 18, 6, 2, 13, And 24.)

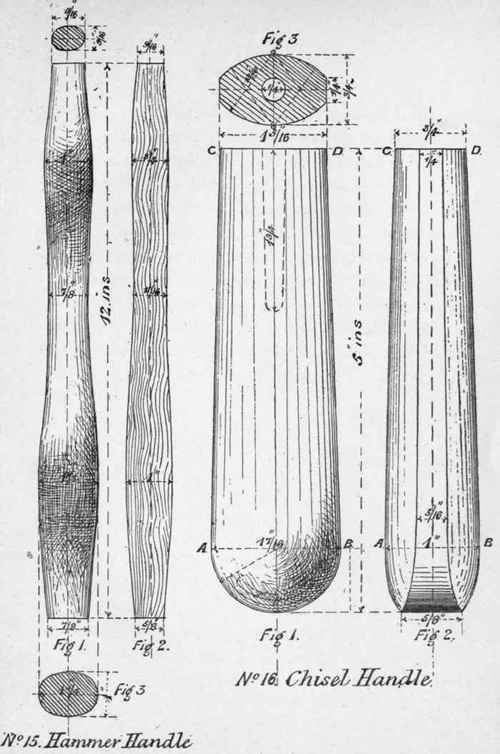

From Beech cut a piece 6 in. long, 2 in. wide, and 1 1/4 in. thick. Plane one side and one edge at right angles. Gauge for greatest width shown from A to B in Fig. 1 of drawings No. 16, and also for greatest thickness shown by A to B in Fig. 2. Plane the rough side and edge down to the respective gauge lines, thus producing a piece of equal thickness throughout, with the sides and edges at right angles. Saw across one end at right angles. On the face thus produced on that end sketch Fig. 3 complete.

Fit a 1/4-in. Bit to the Brace and bore a hole in the centre of the same end to the depth shown by the dotted lines in the upper part of Fig. 1. Plane from A to C and from B to D, thus slightly tapering the sides and edges, but maintaining right angles throughout. Measure from the thin flat end and mark the length of 5 in. Then, from the centre of the line A to B of Fig. 1, describe a semicircle on each side as shown at bottom of Fig. 1. With turning saw and chisel, shape each side of that end to the semicircle. Then plane off the angles so far as to make the shape in unison throughout with Fig. 3, presenting sides corresponding to Fig. 1, and edges corresponding to Fig. 2. Then complete the shape of the thick end with knife, as shown in Fig. 2, and finish with file, scraper, and sand-paper.
