(Requiring Exercises 5, 7, 8, 9, 6, And 3.)

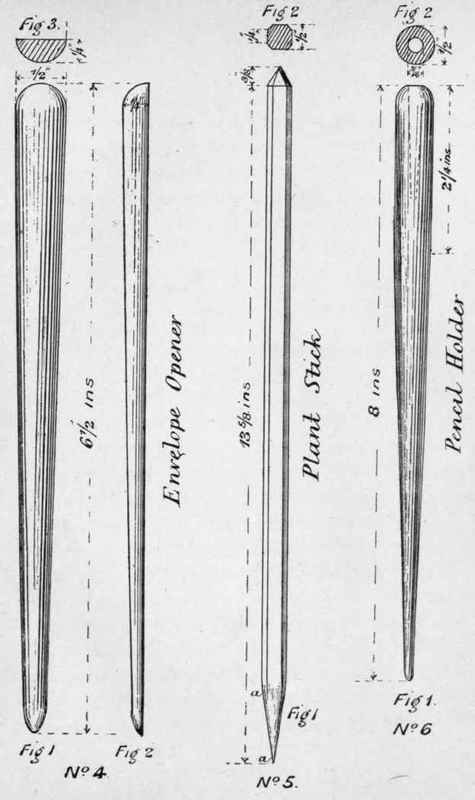

In this model the Jack Plane and the Try Square are used for the first time. Saw off from Pine a piece about 16 in. long and £ in. square. Plane one side straight and true, and one of the other sides at right angles. Cut each end across at right angles, and on each end, using the planed edges as basis, mark Fig. 2 of drawings No. 5. Then plane the other two sides at right angles, so as to produce a square rod, which, at every part throughout its length, should fit the try square. Then, with the plane, take about two shavings off each corner, in unison with the figures at the ends. Then, with the knife, cut the point from a to a as shown in Fig. 1 of drawings No. 5. Then measure from the long-pointed end, mark the exact length, cut across at the mark, and cut the other end to a point with eight sides as shown in Figs. 1 and 2. Finish with sand-paper at the long-pointed end only.
