A wood turning lathe consists of four principal parts, and these are (1) the headstock; (2) the rest; (3) the tailstock; (4) the bed and (5) the stand, the first three parts of which are shown in Fig. 16.

Fig. 16. The Chief Parts Of A Turning Lathe

The head stock is fixed to the bed of the stand; it is formed of a cone pulley mounted on a spindle in a frame. A spur center is screwed to the spindle and this holds the wood tightly in place while it is being turned. The rest, which is adjustable, is used to lay your turning tool on and so keep it in position. A long and short rest usually go with the better lathes.

The tailstock has two adjustments, the first of which allows it to be slipped back and forth on the bed and clamped at any point which gives a rough adjustment, and the second is a spindle which is threaded on one end and has a taper center, that is a sharp point on the other end. This allows the piece of wood which is to be turned to be set between the spur center of the headstock and the taper center of the tailstock.

These parts rest on the bed of the lathe and this in turn is mounted on a stand. The stand is fitted with a drive wheel and this is driven by a treadle with which it is connected by a pitman exactly like a foot-power scroll saw.

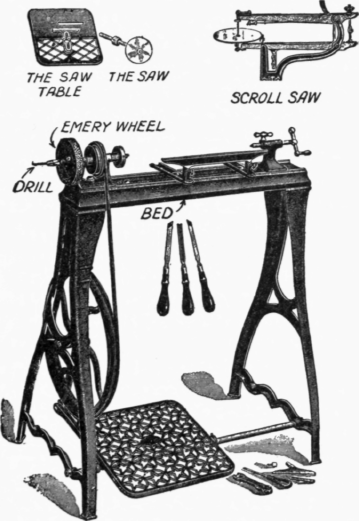

Fig. 17. The Cheapest Wood Turning Lathe Made

The Cheapest Lathe You Can Buy

The cheapest lathe you buy is called the Companion; it is made by the Millers Falls Company, Millers Falls, N. Y., and it costs $10.50. It has a long and a short rest, three turning tools and a 2 inch face plate and spur center. When you get it uncrate it, set it up, oil it well and you are ready to do some turning. The lathe is shown complete in Fig. 17.

Attachments for the Companion Lathe

This lathe is fitted with a 4 inch emery wheel without extra charge. A very useful attachment is a circular saw 3 inches in diameter and a saw table 6 x 7 inches with a straight edge guide; it costs $1.25 extra. A scroll saw attachment that can be clamped on the lathe bed may be bought for $3.00 extra. Both of these attachments are shown in Fig. 17. Of course better and larger lathes can be had for more money.
