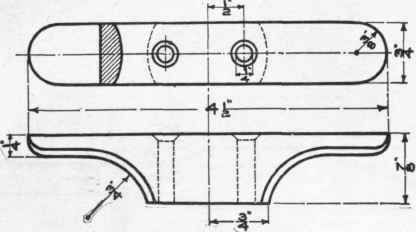

Fig. 70.

Birch. 3/4 inch.

Directions

Prepare wood 4 3/4 x 1 inch.

1. See 1 in Model No. 14.

2. Measure length and find middle, square lines around at these marks.

Draw centre line on top.

3. Construct side view according to drawing.

4. Cut to these lines, flat.

5. Draw semicircles on top and arcs at bottom.

6. Cut semicircles and curved under part.

7. Bore holes.

Note: A variation in shapes and sizes of this cleat may be made. The long sides and top may be curved, making it narrower at ends and more beautiful. The cleat may be used for boats, flag-pole lines, or clothes-line. It is considered better than those made of metal.
