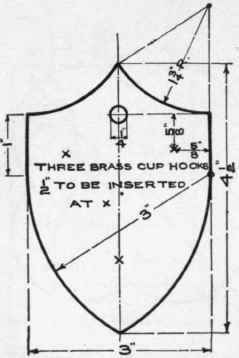

Fig. 61.

Whitewood. 3/16 inch.

Directions

Prepare wood 4 5/8 x 3 1/8 inches.

1. Make the piece 3 inches wide.

2. Draw a centre line and construct shield according to drawing.

3. See 3 in Model No. 8.

4. Bore hole and mark places for three hooks.

5. Sandpaper.

6. Insert hooks.
