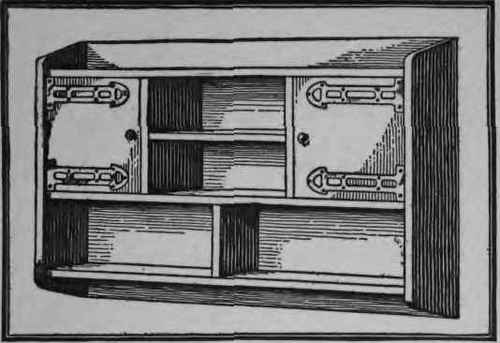

The only decorative feature of the useful wall shelves shown below is the set of imitation hinges cut from polished brass, which brighten up the whole structure. If such hinges cannot be purchased, the reader will not find it a very difficult task to cut some from soft brass plate, the necessary amount of which will cost only a few cents. A cold-chisel may be used in cutting, provided a liberal margin is left for filing, otherwise a metal saw, such as jewelers use, will be necessary.

The construction is so simple that little need be said in this regard. The ends and shelves should first be made and connected, after which the back should be nailed in place. The connections of the upper two shelves may be made by means of small blocks glued and nailed in the corners of the two compartments. Use glue on all joints.

The portions of the back that extend above the top and below the bottom shelf, should be made of strips thick enough to hide completely the end wood of the main portion of the back. The doors are next made ready, and may be of single pieces, or they may be arranged to contain a small panel in the center.
Mill Bill | |||||
PCS. | |||||
2 | 3/4 | X | 10 1/4 | x | 28 |
3 | 3/4 | X | 10 | x | 42 |
2 | 3/4 | X | 3 1/4 | X | 42 |
2 | 3/4 | X | 12 1/4 | x | 12 1/4 |
2 | 3/4 | X | 10 | x | 12 1/4 |
1 | 3/4 | X | 10 | X | 16 1/2 |
4 | 1/2 | X | 11 | x | 22 |
