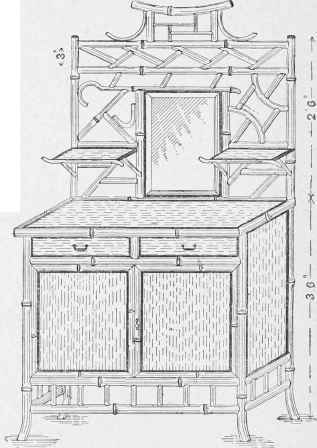

In the accompanying sketch the uprights of top are 2 ft. 6 in. long, the cross rails 3ft. 3iu.,and the mirror 20in. by 15in. Use 1 1/4-m, or 1 1/2n. canes for the work. Make up the front and back of the cabinet in the first place, and, while these are setting, get out the back of the top. The two bottom sections should now be joined together. The rails should be about 10 in. between if the cabinet is to be 13 in. wide over all. Make the door frames from perfectly straight 1-in. canes. These canes should be mitred at the corner, and a right-angle dowel should be used for filling. The rebate for the glass should be formed with split black cane. The doors work on pins, which act as pivots.

Design for Bamboo Cabinet.
