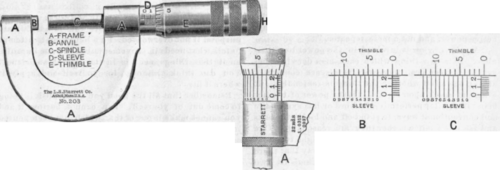

By Courtesy of The L. S. Starrett Company.

The spindle C is attached to the thimble E at the point H. The part of the spindle which is concealed within the sleeve and thimble is threaded to fit a nut in the frame A. The frame being held stationary, the thimble E is revolved by the thumb and finger, and the spindle C being attached to the thimble, revolves with it and moves through the nut in the frame, approaching or receding from the anvil B. The article to be measured is placed between the anvil B and the spindle C. The measurement of the opening between the anvil and the spindle is shown by the lines and figures on the sleeve D and the thimble E.

The pitch of the screw threads on the concealed part of the spindle is 40 to an inch. One complete revolution of the spindle, therefore, moves it longitudinally one-fortieth (or twenty-five thousandths) of an inch. The sleeve D is marked with 40 lines to the inch, corresponding to the number of threads on the spindle. When the micrometer is closed, the beveled edge of the thimble coincides with the line marked 0 on the sleeve, and the 0 line on the thimble agrees with the horizontal line on the sleeve. Open the micrometer by revolving the thimble one full revolution, or until the 0 line on the thimble again coincides with the horizontal line on the sleeve ; the distance between the anvil Band the spindle C is then 1-40 (or .025) of an inch, and the beveled edge of the thimble will coincide with the second vertical line on the sleeve. Each vertical line on the sleeve indicates a distance of 1-40 of an inch. Every fourth line is made longer than the others and is numbered 0, 1, 2, 3, etc. Each numbered line indicates a distance of four times 1.40 of an inch, or one-tenth.

The beveled edge of the thimble is marked in twenty-five divisions, and every fifth line is numbered from 0 to 25. Rotating the thimble from one of these marks to the next moves the spindle longitudinally 1-25 of twenty-five thousandths, etc.

Twenty-five divisions will indicate a complete revolution, .025 or 1-40 of an inch.

To read the micrometer therefore, multiply the number of vertical divisions visible on the sleeve by 25, and add the number of divisions on the bevel of the thimble, from 0 to the line which coincides with the horizontal line on the sleeve. For example, as the tool is represented in the engraving there are seven divisions visible on the sleeve. Multiply this number by 25 and then add the number of divisions shown on the bevel of the thimble, 3. The micrometer is open one hundred and seventy eight thousandths. (7x25 = 175 +3=178.)

Readings in ten thousandths of an inch are obtained by the use of a vernier, so named from Pierre Vernier, who invented the device in 1631. As applied to a micrometer this consists of ten divisions on the thimble. The difference between the width of one of the ten spaces on the sleeve and one of the nine spaces on the thimble is therefore one-tenth of a space on the thimble. In engraving B the third line from 0 on thimble coincides with the first line on the sleeve. The next two lines on thimble and sleeve do not coincide by one-tenth or a space on thimble; the next two, marked 5 and 2, are two tenths apart, and so on. In opening the tool, by turning the thimble to the left, each space on the thimble represents an opening of one-thousandth of an inch. If, therefore, the thimble be turned so that the lines marked 5 and 2 coincide, the caliper will be opened two-tenths of one thousandth or two ten-thousandths. Turning the thimble further, until the line 10coincides with the line 7 on the sleeve, as in engraving C, the caliper has been opened seven ten-thousandths, and the reading of the tool is .2257.

To read a ten thousandths micrometer, first note the thousandths, as in the ordinary micrometer, then observe the line on the sleeve which coincides with a line on the thimble. If it is the second line, marked 1, add one ten thousandth; if the third, marked 2, add two ten thousandths, etc.
