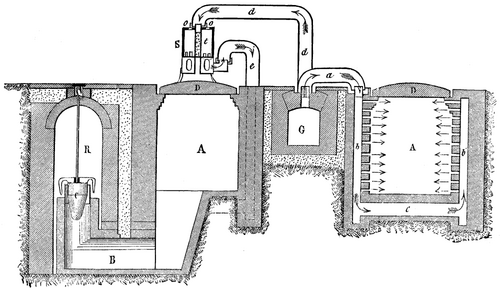

In order that small establishments may put to profit the advantages derived from the use of annular furnaces heated with gas, smaller dimensions have been given the baking chambers of such furnaces. The accompanying figure gives a section of a furnace of this kind, set into the ground, and the height of whose baking chamber is only one and a half meters. The chamber is not vaulted, but is covered by slabs of refractory clay, D, that may be displaced by the aid of a small car running on a movable track. This car is drawn over the compartment that is to be emptied, and the slab or cover, D, is taken off and carried over the newly filled compartment and deposited thereon.

The gas passes from the channel through the pipe, a, into the vertical conduits, b, and is afterward disengaged through the tuyeres into the chamber. In order that the gas may be equally applied for preliminary heating or smoking, a small smoking furnace, S, has been added to the apparatus. The upper part of this consists of a wide cylinder of refractory clay, in the center of whose cover there is placed an internal tube of refractory clay, which communicates with the channel, G, through a pipe, d. This latter leads the gas into the tube, t, of the smoking furnace, which is perforated with a large number of small holes. The air requisite for combustion enters through the apertures, o, in the cover of the furnace, and brings about in the latter a high temperature. The very hot gases descend into the lower iron portion of this small furnace and pass through a tube, e, into the smoking chamber by the aid of vertical conduits, b', which serve at the same time as gas tuyeres for the extremity of the furnace that is exposed to the fire.

GAS FURNACE FOR BAKING REFRACTORY PRODUCTS.

GAS FURNACE FOR BAKING REFRACTORY PRODUCTS.

In the lower part of the smoking furnace, which is made of boiler plate and can be put in communication with the tube, e, there are large apertures that may be wholly or partially closed by means of registers so as to carry to the hot gas derived from combustion any quantity whatever of cold and dry air, and thus cause a variation at will of the temperature of the gases which are disengaged from the tube, e.

The use of these smoking apparatus heated by gas does away also with the inconveniences of the ordinary system, in which the products are soiled by cinders or dust, and which render the gradual heating of objects to be baked difficult. At the beginning, there is allowed to enter the lower part of the small furnace, S, through the apertures, a very considerable quantity of cold air, so as to lower the temperature of the smoke gas that escapes from the tube, e, to 30 or 50 degrees. Afterward, these secondary air entrances are gradually closed so as to increase the temperature of the gases at will.
