The system of heat regeneration in the firing of gas retorts, in accordance with the principle which Dr. C.W. Siemens has worked out in such a variety of ways in the industrial arts, has lately been applied with very marked success at the Dalmarnock Station of the Glasgow Corporation Gas Works. Notwithstanding the fact that a period of about twenty years has elapsed since Dr. Siemens successfully adapted his system to the firing of retorts at the Paris Gas Works, it seems to have made but little progress up to the present time; for what reasons it is perhaps difficult to explain. It is certain, however, that so-called regenerator furnaces of various forms have, from time to time, been brought into use at gas works for the purpose in question both on the Continent and in this country; and in recent years the subject has received much attention from gas engineers, the general opinion eventually being that the adoption of such a system of working would be certain to result in so great an amount of economy as to put gas as an illuminating agent on a more secure footing to compete successfully with its modern and somewhat aggressive rival, the electric light.

Of course, it is now admitted that the mode of adapting the heat regenerative principle at the Paris Gas Works was attended with a degree of complexity in the structural arrangements that was so great and so expensive as to place it practically beyond the reach of gas companies and gas corporations generally, when the expense as well as the scientific beauty and practical efficiency of the new mode of applying and utilizing heat had to be considered. Fortunately, however, Dr. Siemens was enabled two or three years ago to demonstrate that there was no such thing as "finality" in that department of invention which he had made almost exclusively his own. About the time mentioned he placed his most advanced views on gas producers and on the regeneration and utilization of heat before the world, and within that period a most decided step in advance has been made, the structural arrangements now required for gas producers and regenerator furnaces having been immensely simplified and cheapened, while their practical utility has in no way been interfered with.

Scarcely had Dr. Siemens announced his new form of gas producer and regenerator than communication was opened with him by Mr. W. Foulis, the general manager to the Glasgow Corporation Gas Trust, with the view of entering into arrangements for its adoption on an experimental scale at one of the stations under his charge. Encouraged by the hearty co-operation of the gas committee, two or three of whose members were well known engineers, Mr. Foulis very soon came to an understanding with Dr. Siemens to have the regenerative system put to a thorough test at the Dalmarnock Gas Works, situated in the extreme east end of the city, and the largest establishment of the kind in Scotland, the total number of retorts erected being about 750. The system in its most recent shape was applied to four ovens, each of which had seven retorts, but which number has since been increased to eight, owing to the space occupied by the furnace in the ordinary settings being rendered available for an additional retort in the new or "Siemens" setting.

For each oven or chamber of eight retorts there was erected a separate gas-producer, so that even one set of eight retorts might alone be used if thought necessary.

GAS RETORTS WITH REGENERATIVE FURNACES .  GLASGOW CORPORATION GAS WORKS.

Gas Retorts With Regenerative Furnaces

GLASGOW CORPORATION GAS WORKS.

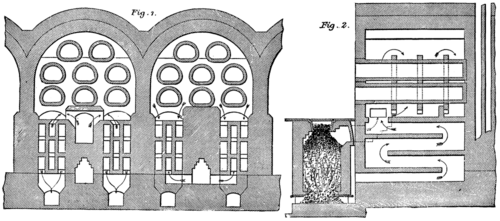

In Figs. 1 and 2 of our illustrations, the general arrangement and the relationship of the gas producer, the regenerators, and the retorts to each other are clearly shown. It was a sort of sine qua non of the new method of firing the retorts that the producer should be in as close proximity as possible to the place where the gaseous fuel was to be used, and it was concluded that the most convenient situation would be immediately in front of its own set of eight retorts, and with its top on a level with the working floor of the retort house. To place it in such a position meant a good deal of excavation, which was also required, however, for the regenerator flues. The excavation was carried down to a depth of 10 ft. below the level of the retort house floor, and as a matter of course the operation of underpinning had to be resorted to for the purpose of carrying down the foundations of the division walls, which, together with the main arches and the hydraulic main, were in no way otherwise disturbed.

As in most new inventions, a good deal of difficulty was experienced at first in connection with these gas producers and heat regenerator furnaces; but by dint of application and by the adoption of modifications made here and there in the arrangements from time to time, as also by a determination not to be beaten, although often disheartened, Mr. Foulis was ultimately rewarded with complete success. The new system of firing being made so simple that there was scarcely any possibility of failure likely to arise in ordinary practice if it was superintended with but a moderate amount of care.

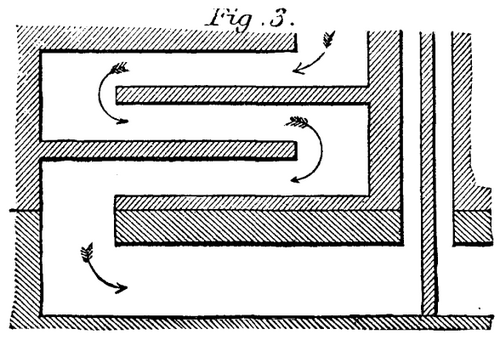

<i>Fig. 3.</i>

Fig. 3.

The results which were obtained in course of time with four ovens, or a total of 32 retorts, were so exceedingly promising that it was forthwith resolved to extend the new mode of firing to the whole of a double bench of twelve ovens, now containing 96 retorts; and all the improvements which had suggested themselves during the working experiments with the four ovens were adopted from the first in the reconstruction of the remaining eight ovens in the bench. More recently the regenerator system has been applied to other 22 ovens, or 176 additional retorts, being the whole of one of the main divisions of the retort house; and during the very depth of the present winter, when the demand for gas was at its greatest height, all the retorts of the converted or "Siemens" settings, amounting to 272, were in full working activity, in which condition they still remain. It is intended to make another very considerable extension of the heat regenerative system of firing during the ensuing spring and summer.
