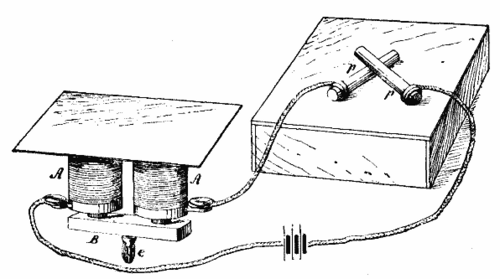

Take two small carbon rods, p p, if procurable, if not, use two ordinary nails, and connect them up in the circuit of the battery; lay them upon a thin box so that the rods or nails cross each other, as in Fig. 17; insert the electromagnet in the circuit; move the coils out a little beyond the ends of the cores, lay a thin iron plate over the ends of the coils, then jar the box upon which the bars, p p, are laid, or drop a pin upon it, or scratch it with a piece of paper, and the sound will be heard by placing the ear against the iron plate resting upon the coils of the magnet.

FIG. 17.   MICROPHONE AND TELEPHONE.

FIG. 17. - MICROPHONE AND TELEPHONE.
