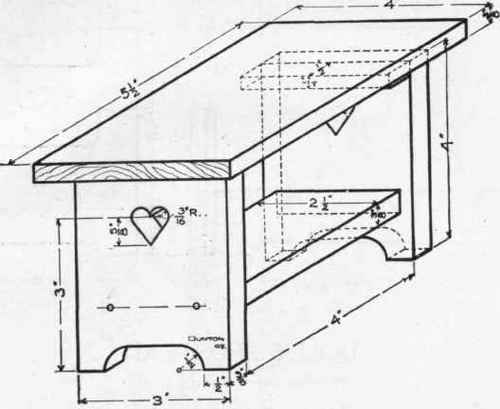

Fig. 47.

Whitewood. 3/8 inch.

Directions

1. Mark and cut two legs in one length and plane width.

2. Mark length of each piece, saw, and plane.

3. Make top.

4. Prepare shelf and two cleats according to drawing.

5. Construct feet and heart-shaped holes. (See Chair, 4, 5, 6, and 7.)

Note: A child's chair and table may be made by using 3/4-inch wood and enlarging the dimensions about three times.

In this case 1 1/2-inch No. 9 screws should be used for fastening parts together.
