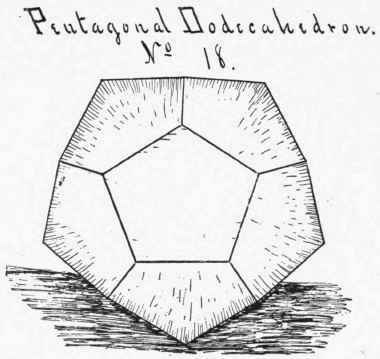

Model No 18 Pentagonal Dodecahedron 52

Place paper so that the short edges will be parallel with the front of desk; bisect the back edge; six inches from this point, directly towards the front, place a point; this shall be the center of a one and one-half inch horizontal line; draw the line, marking the left end A, and the right end B; on line A B construct a pentagon as in pentagonal prism.

The upper right corner is C, the upper left, D, and the upper, E. Join with ruler C and D. and draw a line one and one-half inches long to the left from D; join with the ruler C and A and draw a line one and one-half inches long- diagonally downward to the left from A. With the outer ends of these lines as centers, and a one and one-half inch radius, draw an intersection of arcs to the left; join points making a pentagon; on all remaining sides of first pentagon construct a similar pentagon.

On the lower left side of lower pentagon construct a pentagon; on the lower side of this pentagon construct a pentagon; on remaining sides of last pentagon construct pentagons.

On the series of six pentagons above there shall be circular margins on the left side of upper right; on the lower left side of upper left; on the lower right side of lower left; on the upper right side of lower; on the upper side of right.

Model No 18 Pentagonal Dodecahedron 53

On the series of six below, there shall be circular margins on the upper left and lower left sides of the upper pentagon; on the upper left, left, and lower left sides of left; on the left, lower, and right sides of the lower left; on the lower, lower right, and upper right sides of the lower right pentagon; and on the lower right, upper right, and upper left of the right pentagon.

Transfer drawing to a scale of one inch to one inch; cut, crease, fold and glue.
