Treatment. - The principles governing the treatment of sand-crack are simple enough in themselves, if not always followed by success.

1. Preventive.

This, as a rule, does not suggest itself until a crack of greater or less extent has made its appearance. Then, simultaneously with the treatment proper of the lesion, preventive measures should be adopted, to aid both in the healing of the fissure already present, and to ward off the occurrence of others that might be likely to form. The hoof, if abnormally brittle, should be regularly dressed with a suitable ointment (one containing glycerine for preference), and its horn kept as nearly as possible in a normal condition. When the condition of the horn predisposing to its fracture is brought about by excessive wet, then the appropriate preventive measures to be adopted suggest themselves.

With regard to the lesion itself, we may term 'preventive treatment' all those measures having for their object the prevention of increase in the size of the crack. They are as follows:

(a) Blistering the Coronet. - In a simple case, where the crack is superficial and close under the coronary margin of the wall, a sharp cantharides blister to the coronet immediately above it will have the desired effect. An increased secretion of horn is brought about, and by this simple means the crack prevented from becoming longer. Very often this is all that is necessary. In fact, we may say here that, no matter what other treatment is adopted, the simultaneous application of a blister to the coronet is always beneficial. To derive full advantages therefrom, the blistering should be repeated several times at intervals of about a fortnight.

(b) Clamping the Crack. - When the services of a skilled smith are at hand, one of the readiest methods of performing this is to draw the edges of the crack together with an ordinary horse-nail.

On each side of the crack a small horizontal furrow is burned or cut into the wall, leaving the horn for about 1/4 inch on each side of the crack intact. This provides a groove for the ends of the clamping-nail to rest in, and brings them flush with the outer surface of the wall. The nail is then driven carefully home through the crack, and the pointed end grasped by the farrier's pincers. The edges of the crack are then drawn tightly together, and the nail firmly clenched.

Fig. 86.   The Sand Crack Firing Iron

Fig. 86. - The Sand-Crack Firing-Iron.

'The horse-nails are prepared in the ordinary way as for driving, with the exception that each is pointed on the reverse side, to prevent puncturing the sensitive structures. Before being used the nails are put in a vice, and the head hammered to form a shoulder, to prevent their being driven too far into the wall, and breaking out the hold.'[A]

[Footnote A: Veterinarian, vol. xlviii., p. 100.]

Before driving the nail some operators burn or bore a hole for it. Opinion seems to differ as to whether this is at all necessary.

A method of clamping which, on account of its simplicity, has become greatly popular, is that of Vachette. For this operation is needed the outfit depicted in Figs. 86 and 87.

Fig. 87.   The Sand Crack Forceps And Clamp

Fig. 87. - The Sand-Crack Forceps And Clamp.

With the special firing-iron (Fig. 86) an indentation, sufficiently large to admit the points of the clamp (Fig. 87), is made on each side of the crack. The clamp is then adjusted, and pressed home tight by means of the sand-crack forceps (Fig. 87). According to the length of the crack, one, two, or three clamps may be necessary. Another useful clamp, though far more complicated in its structure, is that of Professor McGill (Fig. 88).

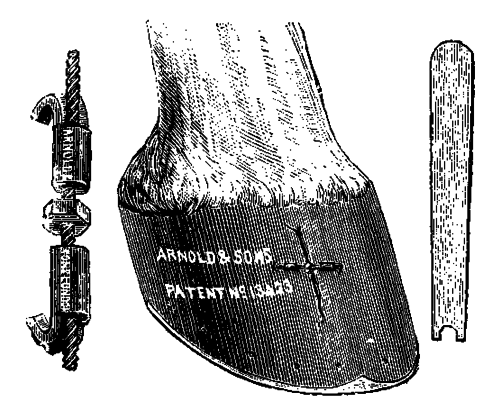

Fig. 88.   Mcgill's Sand Crack Clamp

Fig. 88. - Mcgill's Sand-Crack Clamp.

'The object of this invention is to arrange on a spindle, which is screw-threaded at one end with a right-hand thread and at the other with a left-hand thread, two clips or clamps, free to travel on the thread, there being a nut between the two which can be turned by a spanner. The clips are placed on the hoof, one on each side of the sand-crack, the hoof being prepared to receive the instrument by filing a groove or notch for the clamps to fit into, and by turning the nut on the screw the clamps are brought towards each other, and the crack thus prevented from spreading.'[A]

[Footnote A: Veterinarian, vol. lxi., p. 141.]

Still a further useful clamp is that of Koster. This is considerably broader than the clamp of Vachette, and its gripping edges are provided with teeth (see Fig. 89).

As with the clamp of Vachette so with this, a groove is burned into the wall on each side of the crack for the accommodation of the jaws of the instrument, and the clamp itself pressed home by means of a special pair of forceps. This form of clamp holds well, and has the advantage of securing a wider area of horn than that of Vachette or McGill.

Fig. 89.   Koster's Sand Crack Clamp

Fig. 89. - Koster's Sand-Crack Clamp.

Clamping by any method should be advised or undertaken only under certain conditions. The horn should be moderately strong, and the wall should be thick. This practically restricts the use of the clamp to cracks of the toe, and it is there, as a fact, they are found of most benefit. While burning the grooves for the clamp, and while tightening the clamp itself, the animal's foot should be on the ground and bearing weight at the heels, thus insuring the greatest possible approximation of the edges of the crack.

With all methods of clamping an untoward result is sometimes the formation of a fresh crack at the point of insertion of the clamps.
