A hand separator of this type was exhibited at the Royal Show at Newcastle by the Aylesbury Dairy Company, of 31 St. Petersburg Place, Bayswater, England.

IMPROVED CREAM SEPARATOR. Fig. 1.
IMPROVED CREAM SEPARATOR. Fig. 1.

IMPROVED CREAM SEPARATOR. Fig. 2.
IMPROVED CREAM SEPARATOR. Fig. 2.

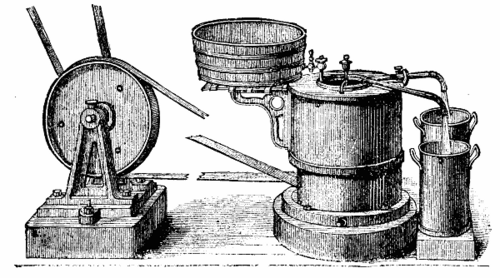

Fig. 1 is a perspective view of the machine, Fig. 2 being a vertical section. The drums of these machines, which make 2,700 revolutions per minute for the large and 4,000 for the small one, have a diameter of 27 in. and 15½ in. respectively, and are capable of extracting the cream from 220 and 115 gallons of milk per hour. These drums are formed by hydraulic pressure from one piece of sheet steel. To avoid the possibility of the machines being overdriven, which might happen through the negligence of the attendant or through the governing gear on the engine failing to act, an ingenious controlling apparatus is fixed to the intermediate motion of the separator as shown in Fig. 3. This apparatus consists of a pair of governor balls pivoted near the center of the arms and attached to the main shaft of the intermediate gear by means of a collar fixed on it. The main shaft is bored out sufficiently deep to admit a steel rod, against which bear the three ends of the governor arms. The steel rod presses against the counterbalance, which is made exactly the right weight to withstand the force tending to raise it, when the intermediate motion is running at its designed speed. The forks between which the belt runs are also provided with a balance weight.

This brings them to the loose pulley, unless they are fixed by means of the ratchet. Should the number of revolutions of the intermediate increase beyond the correct amount, the extra centrifugal force imparted to the governor balls enables them to overcome the balance weight, and in raising this they raise the arm. This arm striking against the ratchet detent releases the balance weight, and the belt is at once brought on to the loose pulley.

IMPROVED CREAM SEPARATOR. Fig. 3.
IMPROVED CREAM SEPARATOR. Fig. 3.

The steel drum is fitted with an internal ring at the bottom (see Fig. 2), into which the milk flows, and from which it is delivered, by three apertures, to the periphery of the drum, thus preventing the milk from striking against the cone of the drum, and from mixing with the cream which has already been separated. The upper part of the drum is fitted with an annular flange, about 1½ in. from the top, reaching to within one-sixteenth of an inch of the periphery. After the separation of the skim milk from the cream, the former passes behind and above this flange through the aperture, B, and is removed by means of the tube, D, furnished with a steel tip projecting from the cover of the machine into the space between the top of the drum and the annular flange, a similar tube, F, reaching below this flange, removing the cream which collects there. The skim milk tube is provided with a screw regulator, the function of which is to enable cream of any desired consistency to be obtained, varying with the distance between the skim milk and cream points from the center of the drum.

Another point about these tubes is their use as elevating tubes for the skim, milk and cream, as, owing to the velocity at which the drum is rotating, the products can be delivered by these tubes at a height of 8 or 10 feet above the machine if required, thus enabling scalding and cooling of either to be carried on while the separator is at work, and saving hand labor. - Iron.
