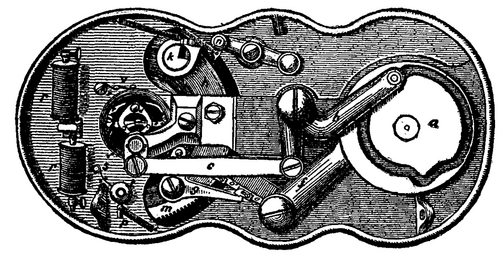

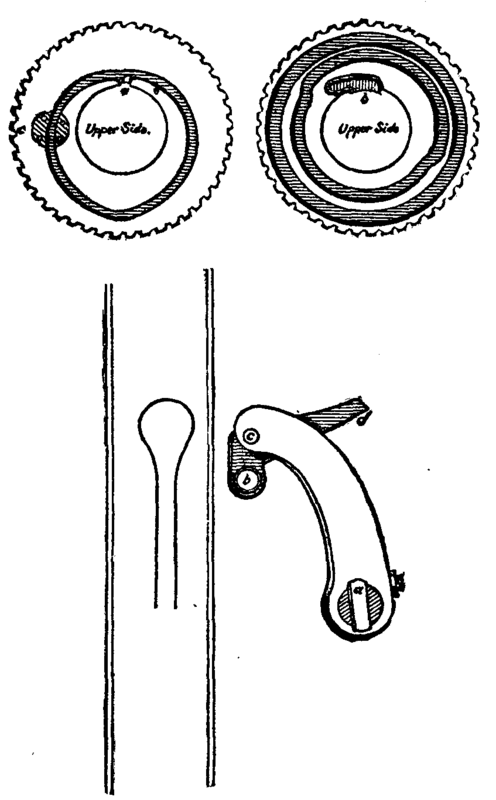

Mention may be made of Singer's special button hole machine for making the straight holes used in linen work, and in which a shuttle is employed. Of Wheeler & Wilson's ingenious button hole machine for the same purpose, I am enabled to show a diagram, in which it will be observed that the feeding arrangements are placed above the bed plate, and are no doubt thereby rendered easily accessible.

Application Of Power To Sewing Machines

There was a time when a cry arose to the effect that the introduction of mechanical sewing would lead to divers calamities, physical and mental. The ladies were to become crooked in the spine, and regular operators were to become regular cripples. It is scarcely necessary to ask, Has this been so? The operators of to-day are, I think, superior in physical attainments to their sisters of the needle and thread fifty years ago.

Within the past few years a revolution has taken place in the moving of sewing machines. Domestic machines will probably always be driven by foot power, spring, electric, and water motors notwithstanding. But the age of treadles in the great manufacturing trades is a thing of the past. It was not necessary for Parliament to step in and protect the workers, as was frequently suggested by alarmists. The commercial interests of manufacturers themselves were at stake. Machines driven by power could do 25 per cent. more work than those moved by foot. The operators, relieved of the treadling, maintained a much better working condition; and altogether the introduction of power driving, once well tested, became a necessity. Power sewing machinery was speedily devised and introduced by several of the first manufacturers, controllers of the speed of the machines followed, and two or three splendid systems of stitching by steam power were soon widely known.

By the kindness of three of the best manufacturers of power sewing machinery, I am enabled to show to you, this evening, the best known systems, arranged just as they are fitted in many large factories, as also a sketch of the arrangements of Wheeler & Wilson's system. We have in the first place a light shafting carrying a band wheel opposite to each machine. By the use of a powerful electromotor, the shafting is caused to rotate at the rate of 400 revolutions per minute by electricity. The current is generated by the Society's dynamo machine, and is conveyed here by copper cable. I do not know of any instance of sewing machinery in a factory being driven by an electromotor, but such means of conveying motive power appears admirably adapted for that purpose, when the stitching room happens to be far removed from the main shafting or engine. But with regard to motors for sewing machines, when special power has to be fitted down for that purpose, my own experience leads me to speak in favor of the admirably governed "Otto" gas engines made by Crossley Bros. These are especially steady, a feature of no small moment in moving stitching machinery of various kinds.

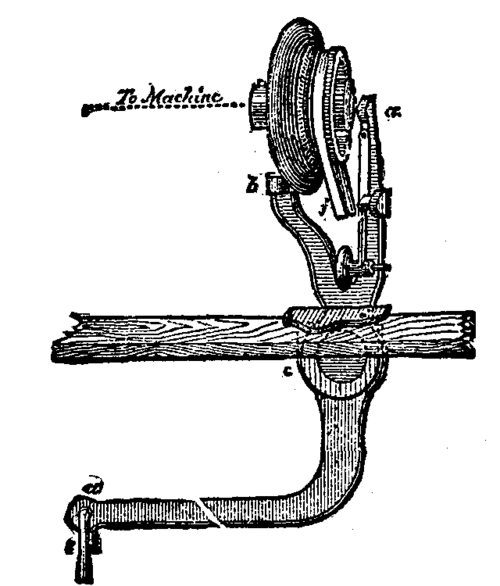

Much attention has been devoted to the invention of controllers of the motive power supplied to sewing machines. The principle of the friction disk has found most favor. In many cases two of these plates, fast and loose, are placed upon the main shaft, and their separation and contact controlled by the treadle. The great sensitiveness of the friction attachment employed by the Singer company is due chiefly to the transference of the friction plates to the axis of the machine itself (Fig. 13). Their contact and separation are controlled by a lever worked by a very slight movement of the treadle. But the chief point of interest in this device lies in the combination with the lever of a brake, enabling the operator, by a simple reversal of the treadle's motion, to instantly suspend the rotation of the machine. The forked lever, in fact, acts simultaneously in throwing off the motion and applying the brake. The speed is always in direct proportion to the pressure exerted upon the treadle, and a single stitch can be made at will.

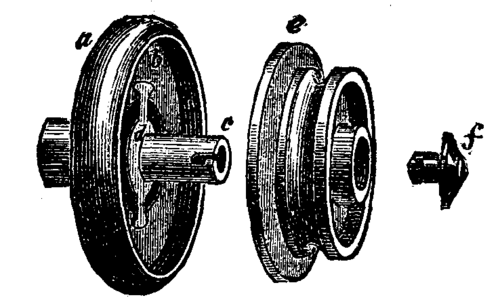

Fig. 14 shows the friction wheel separated, the portion a being fast, and e loose.

Application Of Power To Sewing Machines 598 8d

FIG. 13.

Application Of Power To Sewing Machines 598 8e

FIG. 14.

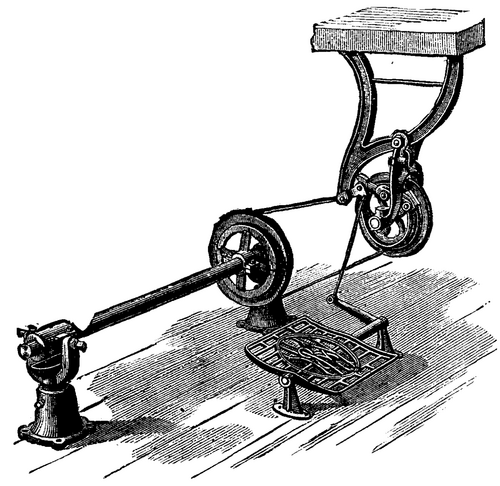

The Wheeler & Wilson company do not confine themselves to any particular controller, but prefer the form shown here this evening (Fig. 15), in which two bands and an intermediate pulley are employed. The first band is left rather loose, and the machine is set in motion by the tightening of this band through the depression of the treadle. The speed varies in proportion to the pressure applied, and the sensitiveness of the arrangement is increased by a brake device coming into play by the reversal of the treadle as before.

Application Of Power To Sewing Machines 598 8f

FIG. 15.

Messrs. Willcox & Gibbs depend upon a similar device shown in three varieties to-night.

Speed Of Power Sewing Machines

The fastest practicable speed of a machine worked by the foot appears to be 1,000 stitches per minute. Most operators can guide the work at a much higher rate, especially in tailoring or on long seams. The average speed upon such work is 1,200 stitches per minute; but many lock-stitch machines are run at 1,500 and 1,800 per minute, and even at much higher rates. There is always a limit to be imposed upon speed by the guiding powers of hand and eye; it is this limit, and not the capability of the machine, that confines the rate of driving. Willcox & Gibbs' single thread machines are run in many instances at 3,500 stitches per minute. We have before us a single thread Singer machine (appropriately named the "Lightning Sewer") and a Willcox machine, moving at the enormous rate of 4,500 stitches per minute, and producing good work. But it is doubtful whether such very great velocities can ever be advantageously employed. Upon collar work, and in sewing boot uppers, the rate seldom rises above 1,200 with advantage. If the machines be speeded too high in any trade, the operator never uses the excess, and it only proves a drawback. I seen the heaviest and hardest kind of navy boots stitched at 1,500 to the minute upon Singer's lock-stitch machines.
