By placing the galvanometer in the circuit of the battery, as shown in Fig. 9, and noting the deflection of the needle, it will be ascertained that a certain amount of current is flowing. Now, by placing in the circuit, in addition to the galvanometer, the remaining coil of the magnet, thus introducing considerable resistance, the current will be diminished, as shown by a smaller deflection of the needle.

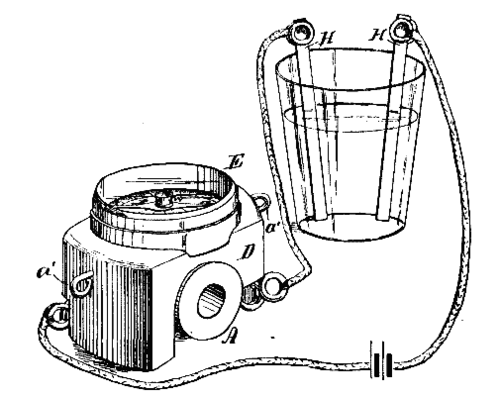

FIG. 9.   EFFECT OF RESISTANCE.
