Fig. 23 is the second or attic story. The main objection to attic rooms is their warmth in summer, owing to the heated roof. This is prevented by so enlarging the closets each side that their walls meet the ceiling under the garret floor, thus excluding all or most of the roof. In the bedchambers, corner dressing-tables, as Fig. 24, instead of projecting bureaus, save much space for use, and give a handsome form and finish to the room. In the bath-room must be the opening to the garret, and a step-ladder to reach it. A reservoir in the garret, supplied by a forcing-pump in the cellar or at the sink, must be well supported by timbers, and the plumbing must be well done, or much annoyance will ensue.

The large chambers are to be lighted by large windows or glazed sliding-doors, opening upon the balcony. A roof can be put over the balcony and its sides inclosed by windows, and the chamber extend into it, and be thus much enlarged.

The water-closets must have the latest improvements for safe discharge, and there will be no trouble. They will cost no more than an outdoor building, and they relieve one from the most disagreeable house-labor.

A great improvement, called earth-closets, will probably take the place of water-closets to some extent; though at present the water is the more convenient.

The method of ventilating all the chambers, and also the cellar, will be described in another place.

Fig. 25 represents a shoe-bag, that can be fastened to the side of a closet or closet-door. 7

Fig. 24.

Fig. 24.

Fig. 25.

Fig. 25.

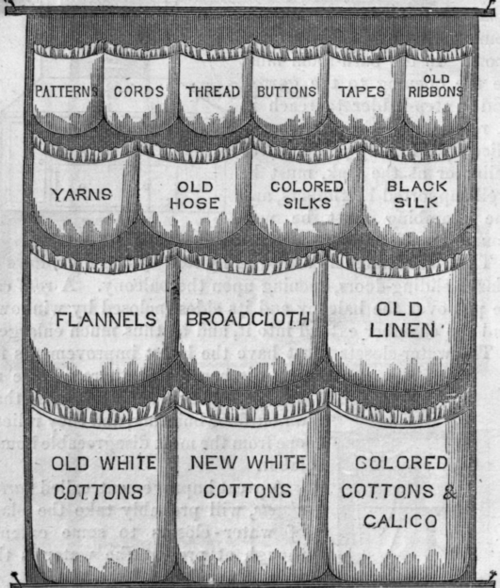

Fig. 26 represents a piece-bag, and is a very great labor and space-saving invention. It is made of calico, and fastened to the side of a closet or a door, to hold all the bundles that are usually stowed in trunks and drawers. India-rubber or elastic tape drawn into hems to hold the contents of the bag is better than tape-strings. Each bag should be labeled with the name of its contents, written with indelible ink on white tape sewed on to the bag. Such systematic arrangement saves much time and annoyance. Drawers or trunks to hold these articles can not be kept so easily in good order, and moreover, occupy spaces saved by this contrivance.

Fig. 26.

Fig. 26.

Fig. 27 is the basement. It has the floor and sides plastered, and is lighted with glazed doors. A form is raised close by the cellar stairs, for baskets, pails, and tubs. Here, also, the refrigerator can be placed, or, what is better, an ice-closet can be made, as designated in the illustration. The floor of the basement must be an inclined plane toward a drain, and be plastered with water-lime. The wash-tubs have plugs in the bottom to let off water, and cocks and pipes over them bringing cold water from the reservoir in the garret and hot water from the laundry stove. This saves much heavy labor of emptying tubs and carrying water.

Fig. 27.

Fig. 27.

The laundry closet has a stove for heating irons, and also a kettle on top for heating water. Slides or clothes-frames are made to draw out to receive wet clothes, and then run into the closet to dry. This saves health as well as time and money, and the clothes are as white as when dried outdoors. The entrance to the kitchen is either through the basement or through the eating-room windows, made to slide.

The wood-work of the house, for doors, windows, etc., should be oiled chestnut, butternut, whitewood, and pine. This is cheaper, handsomer, and more easy to keep clean than painted wood.

In Fig. 7 are planned two conservatories, and few understand their value in the training of the young. They provide soil, in which children, through the winter months, can be starting seeds and plants for their gardens and raising valuable, tender plants. Every child should cultivate flowers and fruits to sell and to give away, and thus be taught to learn the value of money, and to practice both economy and benevolence.

According to the calculation of a house-carpenter, in a place where the average price of lumber is four dollars a hundred, and carpenter work three dollars a day, such a house can be built for sixteen hundred dollars. For those practicing the closest economy, two small families could occupy it, by dividing the kitchen, and yet have room enough. Or one large room and the chamber over it can be left till increase of family and means require enlargement.

A strong horse and carry-all, with a cow, garden, vineyard, and orchard, on a few acres, would secure all the substantial comforts found in great establishments, without the trouble of ill-qualified servants.

And if the parents and children were united in the daily labors of the house, garden, and fruit culture, such thrift, health, and happiness would be secured as is but rarely found among the rich.

Let us suppose a colony of cultivated and Christian people, having abundant wealth, who now are living as the wealthy usually do, emigrating to some of the beautiful Southern uplands, where are rocks, hills, valleys, and mountains as picturesque as those of New-England, where the thermometer but rarely reaches 90° in summer, and in winter as rarely sinks below freezing-point, so that outdoor labor goes on all the year, where the fertile soil is easily worked, where rich tropical fruits and flowers abound, where cotton and silk can be raised by children around their home, where the produce of vineyards and orchards finds steady markets by railroads ready-made; suppose such a colony, with a central church and school-room, library, hall for sports, and a common laundry, (taking the most trying part of domestic labor from each house) - suppose each family to train the children to labor with the hands as a healthful and honorable duty; suppose all this, which is perfectly practicable, would not the enjoyment of this life be increased, and also abundant treasures be laid up in heaven, by using the wealth thus economized in diffusing similar enjoyments and culture among the poor, ignorant, and neglected ones in desolated sections where many now are perishing for want of such Christian example and influences?
