An Example Of A Square Dial Clock In A Veneered Walnut Case Of Good Proportions And With Its Correct Base. 1700 Type.

Fig. 409. An Example Of A Square-Dial Clock In A Veneered Walnut Case Of Good Proportions And With Its Correct Base. 1700 Type.

Types Of Long Case Clock Dials Part 3 200533

Fig. 411.

Types Of Long Case Clock Dials Part 3 200534

Fig. 410.

Joseph Knibb, Londini, Fecit. Fig. 410.

Fig. 412. Joseph Knibb, Londini, Fecit. Fig. 410. - 8-day Clock, in oak case veneered with English walnut, quartered and cross-banded. - 6 ft. 0 ins. total height, 9 3/4 ins. width of waist. The carved pediment and central ball are typical of the early cases of Tompion and Knibb. - Fig. 411. - The dial of Fig. 161, signed on bottom edge "Joseph Knibb; Londini; Fecit." - Fig. 412. - Back view of clock movement, showing the pendulum, which is of seconds length (39.1393 ins.) and its "butterfly" nut on the rod for extra regulation, in addition to the nut shown in Fig. 165. - Date about 1690. - Richard Arnold, Esq.

The Hood Raised On Its Click Spring.

Fig. 413. The Hood Raised On Its Click-Spring. - Showing the rocketting catch which fastens the hood when the trunk door is closed.

Back View Of The Clock (Fig. 161).

Fig. 414. Back View Of The Clock (Fig. 161). - Showing the outside locking plate and extra adjusting] nut over the pendulum suspension. - [ (These two clocks are photographed to the same scale).

Christopher Gould, London.

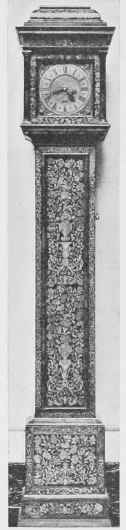

Fig. 415. Christopher Gould, London. - 8-day Striking and Pull Repeating Clock. 5 bells. Marqueterie case. 5 ft. 9 ins. high. 7 1/4-in. dial. Date about 1690. - C D. Rotch, Esq.

Cornelius Herbert, London.

Fig. 416. Cornelius Herbert, London. - 8-day Striking Clock. Marqueterie case. 8 ft. 4 ins. high. 12-in. dial. Date about 1700.

Thomas Tompion, London.

Fig. 417. Thomas Tompion, London. - Dial of 8-day clock of about 1700.

Jacobus Hassanius, London.

Fig. 418. Jacobus Hassanius, London. - Dial of 8-day clock of 1710 type.

Mr. Richard Arnold has a bracket-clock by Knibb which also strikes in the same way. It is illustrated in Figs. 403 to 406. The same peculiarity of the " IV " in the dial numbering will be noticed. It is difficult to understand the reason of this striking in a bracket-clock, the striking-duration offering no problem, as it does in the case of a month long-case, especially when of small size. Actually, the going train of this clock requires to be wound five times in the same space of time as the striking train is wound twice. The system, therefore, in the case of this bracket clock, can only have been a conceit.

Fig. 407 illustrates two features which are rare on bracket-clock dials, and still rarer in the case of long-case clocks. The hour ring is cut away between the numerals, showing the matting of the dial underneath, and every minute on the outside of the circle is separately numbered from 1 to 60. This is technically known as a minute-numbered skeleton-dial. The pattern of the corner-pieces and the style of the case, veneered with laburnum and inlaid with simple marqueterie of stars, fans and jessamine leaves, indicate a date not later than 1695 and possibly some ten years earlier. The movement is a month striker. The case measures 6 ft. 8 ins. in height. Fig. 408 is another skeleton minute-numbered dial from one of Joseph Knibb's bracket clocks, which shows the detail more distinctly.

Jos. Davis, Ratlefe Hiway;

Fig. 419. Jos. Davis, Ratlefe Hiway; - Dial of 8-day clock of 1710 (late) type.

Langley Bradley, London.

Fig. 420. Langley Bradley, London. - Dial of 8-day clock of the 1710 - 15 type.

While clocks of the type of the last five examples are rare and valuable, it is possible to procure more ordinary, but still very refined specimens, at quite a commercial price. It must be remembered, however, that these early clocks were, until quite recent years, very scantily appreciated, and have by no means reached their true value. Nothing could be more refined and pleasing, as articles of furniture, than the simple walnut long-case clocks such as Fig. 409. The movements are almost invariably of good, if not fine quality, the cases are usually of small unassertive size, and the clocks fulfil all the requirements of ordinary good-class furnishing. The collector, however, should learn to recognise a good clock at a glance. The appreciation of the following points should be practically instantaneous. The clock should be an eight-day, at least; thirty-hour clocks are worthless. It should have a striking train, - unless there exist sufficient reason to the contrary, as in the case of Fig. 394, - with both trains winding from the front of the dial, and the hands should be well pierced and of the pattern of the period of the clock. A study of clock-hands may be made, with ease and advantage, by the collector.

Several typical examples are illustrated on pages 341 to 343, and each clock illustration furnishes one pair, which can be examined with a magnifying glass. Corner-pieces maybe of several patterns, but if they are merely rough castings, without chasing, they are subsequent additions, and it would be advisable to suspect the entire clock. The hourring should be silvered, - unless the silvering has, obviously, been worn away, - and the minute divisions either on the extreme outer edge, or if set inside, with an additional space outside for the Arabic minute numerals, neither the space nor the numerals should be large. Coarse minute numerals indicate the late degenerate country-made clock.
