Automatic Door Switch

Where indicated on the plan, clothes closets shall be equipped with automatic door switch to connect the light when the door is open. Fig. 266 is placed in the door frame in such position that electric contact is made by release of the projecting pin as the door is opened. When the door is closed, the pin is depressed and the light is extinguished

Plug Receptacles

Plug receptacles shall be selected from the styles shown in Figs. 267,a, b, c or d.

Fig. 267,a is the disappearing - door type with beveled-edge brass cover plate finished to match surrounding hardware. In this receptacle the doors are pushed inward by the insertion of the plug and upon its withdrawal close automatically, effectually excluding dirt and concealing the live terminals. It is the latest and best plug receptacle obtainable.

Fig. 267,b is of the Chapman type with beveled-edge brass cover plate finished to match surrounding hardware. In this receptacle the doors open outward but are flush whether the plug is in or out.

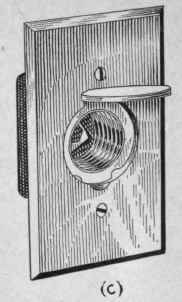

Fig. 267,c is of the screw-plug type with beveled-edge brass cover plate finished to match surrounding hardware. By many this is preferred for apartment use as it will receive any style of Edison attachment plug.

Fig. 266.   Automatic door switch.

Fig. 266. - Automatic door switch.

Plug Receptacles 279Plug Receptacles 280Plug Receptacles 281Fig. 267.   Styles of plug receptacles.

Fig. 267. - Styles of plug receptacles.

Fig. 268.   Heating device receptacles.

Fig. 268. - Heating-device receptacles.

Fig. 267, d is of the removable-mechanism type with beveled-edge brass cover plate finished to match surrounding hardware.

Fig. 269.   Service switches.

Fig. 269. - Service switches.

The mechanism of this receptacle is exchangeable with the mechanism of the double-pole switch as shown in Fig. 270,c.

Heater Switch, Pilot And Receptacle

Heating-device outlets shall be equipped with combination of switch, pilot light and receptacle with plug and spare pilot lamp. Figs. 268,a, b, c and d, represent various forms from which selection may be made. All are adapted for the same purpose and differ only in mechanical arrangement.

Fig. 270.   Local wall switches.

Fig. 270. - Local wall switches.
