This is an excellent form of table for the amateur to make and is useful for many purposes (Figs. 329 and 330). If of moderate size, it can be made of 7/8" stock, but if large, and to be subjected to rough usage, thin plank will be more suitable for the ends and top. Another good form of chair-table can be made on the same principle by making a narrower seat, or a heavy chair, and attaching a circular top by hinges to the back of the arms of the seat.

Before beginning work read carefully Marking, Rule, Square, Saw, Plane, in Part V., and look up any other references.

The framing of the lower part is similar to that of a box. Get out the upright ends and the front and back of the box part and fit them together as shown in Fig. 331, a rabbet (see Rabbet) or groove being cut to receive the bottom. The lid, which forms the seat, can be arranged as shown (see Hinges). The top, made like any table-top and fastened by screws to the deep cleats shown (see Screws), is pivoted to either side of the upright ends by pins when a seat is desired. When you wish to use the table and the top is lowered, it can be held in place by inserting pins in the other two holes also. The pins should not be less than 1/2" or f" in diameter. Care must be used in laying off the points for making these holes (see Boring).

Table And Settle Or Chair Table 339

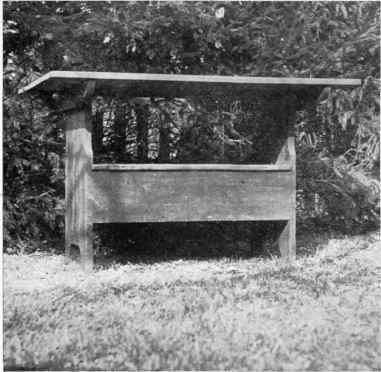

Fig. 329.

Table And Settle Or Chair Table 340

Fig. 330.

The remaining details are not different from those of the articles already shown.

See end of introduction to this chapter for directions about smoothing, putting together, and finishing. See also Scraper, Sandpaper and Finishing, i n Part V.

Table And Settle Or Chair Table 341

Fig. 331.
