Estimate Of Residence At Ridgedale, Mo For George A. Jones, Esq
Description
This section is from the book "Cyclopedia Of Architecture, Carpentry, And Building", by James C. et al. Also available from Amazon: Cyclopedia Of Architecture, Carpentry And Building.
Estimate Of Residence At Ridgedale, Mo For George A. Jones, Esq
Staking-out and setting batter-boards.. | $15.00 |
Water supply during construction... | 10.00 |
$25.00 |
Excavation
Note. - Excavation is priced by the cubic yard; and in this regard, the distance to which the excavated material must be carted will be an important consideration. In the present case, the material is to be carried only a short distance, so that no unusual conditions will have to be considered.
As before mentioned, it is usually well to dig a cellar at least a foot larger all around than the sill line, so that plenty of room may be afforded to the mason to plaster the outside of the wall. This should be done without regard to the specifications. As this extra excavation lies entirely outside the line of the house, it may be well to take it off separately, remembering that it will extend down into the trench below the wall, making about 8 feet of height.
Quantities - | Cu. Ft. | ||||
42 ft. 0 in. | X | 8 ft. 0 in. | X | l ft.0in. | . 336 |
34 ft. 0 in. | X | 8 ft. 0 in. | X | l ft.0in. | . 272 |
10 ft. 4 in. | X | 8 ft. 0 in. | X | l ft.0in. | . 83 |
17 ft. 6 in. | X | 8 ft. 0 in. | X | l ft.0in. | . 140 |
68 ft. 0 in. | X | 8 ft. 0 in. | X | l ft.0in. | . 544 |
41 ft. 0 in. | X | 8 ft. 0 in. | X | l ft.0in. | . 328 |
Cellar Excavations - | |||||
28 ft. 0 in. | X | 43 ft. 0 in. | X | 5 ft. 6 in. | .6,622 |
12 ft. 6 in. | X | 3 ft. 0 in. | X | 5 ft. 6 in. . | 206 |
26 ft. 0 in. | X | 20 ft. 6 in. | X | 5 ft. 6 in. | 2,931 |
9 ft. 0 in. | X | 6 ft. 6 in. | X | 5 ft. 6 in. . . | 322 |
Carried forward | 11,784 cu. ft. | ||||

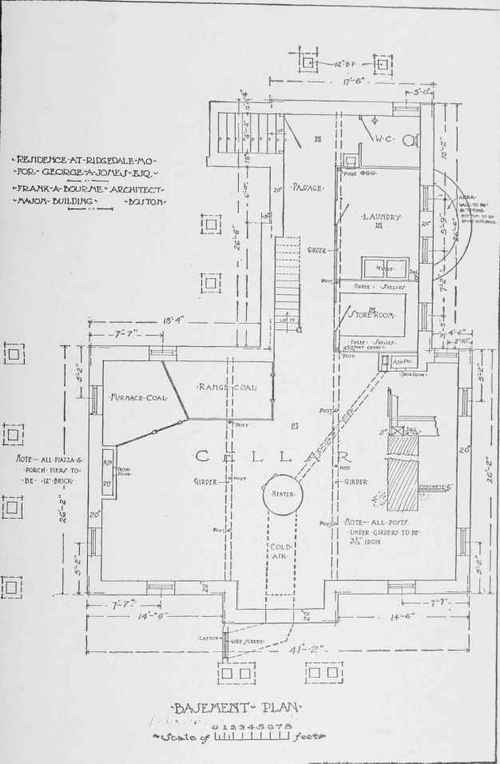

Fig. 3
Brought forward | 11,784 cu. ft. |
Miscellaneous Quantities - | |
Piers | |
2ft. 0 in. X 2ft. 0 in. X 3ft. 6in. X 12 | 168 |
Trench | |
185ft. 0 in. X 1ft. Sin. X 1ft. 0 in. | . 308 |
Area | |
14 ft. 0 in. X 2ft.8in. X 3ft.6in. | . 129 |
123ft. 0 in. X 3 ft. 6in. X 1 ft. 6 in. | . 645 |
5 ft. 6in. X 5 ft. 6in. X 8 ft. 0 in. | 242 |
10 ft. 0 in. X 10 ft. 0 in. X 8 ft. 0 in. | . 800 |
6 X 2ft. 0in. X 2ft. 0in. X 5 ft. 0in. | 120 |
Total, | 14,196 cu. ft. |
Total, 14,196 cu. ft., or 525 cu. yds., at 50 cents . .$262.50 | |
STONEWORK | |||||
Dry Walls in Trench - | Cu. Ft. | ||||
16 ft. 0 in. | X | 1 ft. 8 in. | X | 1ft. 0in. | . 27 |
16ft. 0in. | X | 1 ft. 8 in. | X | 1ft. 0in. | . 27 |
12 ft. 6 in. | X | 1 ft. 8 in. | X | 1 ft. 0in. . | . 20.8 |
3 ft. 0 in. | X | 1 ft. 8 in. | X | 1 ft. 0 in. | 5 |
23 ft. 0 in. | X | 1 ft. 8 in. | X | 1 ft. 0 in. | 38 |
16 ft. 6 in. | X | 1 ft. 8 in. | X | 1 ft. 0 in. | 27.5 |
28 ft. 0 in. | X | 1 ft. 8 in. | X | 1ft. 0in. | . 46 |
28 ft. 0 in. | X | 1 ft. 8 in. | X | 1ft. 0in. | . 46 |
14 ft. 6 in. | X | 1 ft. 8 in. | X | 1ft. 0in. | . 24 |
4 ft. 6 in. | X | 1 ft. 8 in. | X | 1ft. 0in. | 7.5 |
23 ft. 0 in. | X | 1 ft. 8 in. | X | 1ft. 0in. | . 38 |
Total | 306.8 cu. ft. | ||||
307 cu. ft. ÷ 25 = 12 perches of dry wall.
Mortar Walls - | |||||
16ft. 0in. | X | 6 ft. 7 in. | X | 1 ft. 8 in. | 175 |
16 ft. 0in. | X | 6 ft. 7 in. | X | 1ft. 8 in. | 175 |
9 ft. 6 in. | X | 8 ft. 3 in. | X | 1ft. 8 in. | 130 |
Carried forward | 480 cu. ft. | ||||
Fig. 4.
Brought forward | 480 cu. ft. |
23 ft. 0 in. X 8 ft. 3 in. X 1ft. 8 in. | 316 |
12ft. 0in. X 6ft. Tin. X 1ft. 8in. | 132 |
28 ft. 0 in. X 8 ft. 3 in. X 1 ft. 8 in. | 385 |
6 ft. 0 in. X 6 ft. 7 in. X 1 ft. 6 in. | . 59 |
10 ft. 0 in. X 6 ft. 7 in. X 1 ft. 0 in. | 66 |
8 ft. 6 in. X 6 ft. 7 in. X 1 ft. 8 in. | 93 |
9 ft. 0 in. X 8 ft. 3 in. X 1 ft. 8 in. | 123 |
25 ft. 0 in. X 6 ft. 7 in. X 1ft. 8 in. | 274 |
6ft. 0in. X 6ft. 7in. X 1ft. 8in. | 66 |
23 ft. 0 in. X 6 ft. 7 in. X 1ft. 8 in. | 252 |
Piers - | |
2 ft. 6 in. X 5 ft. 6 in. X 1 ft. 0 in. | 14 |
2 ft. 6 in. X 5 ft. 6 in. X 1 ft. 0 in. | 14 |
2 ft. 0 in. X 2 ft. 0 in. X 1 ft. 0 in. | 4 |
12ft. 0in. X 3 ft. 6 in. X 2ft. 0in. | 84 |
12 ft. 0 in. X 3 ft. 6 in. X 2 ft. 0 in. | . 84 |
Area - | |
14 ft. 0 in. X 3 ft. 6 in. X 1 ft. 6 in. | 73 |
Total, | 2,519 cu. ft. |
2,519 cu. ft ÷ 25 = 101 perches of mortar wall. | |
Cu. Ft. | ||||||
16 ft. 0 in. | X | 1 ft. 8 in. | X | 1 ft. 8 in. | 45 | |
16 ft. 0in. | X | 1ft. 8 in. | X | 1ft. 8 in. | 45 | |
6 ft. 0 in. | X | 1 ft. 8 in. | X | 1ft. 8 in. | 17 | |
12ft. 0in. | X | 1 ft. 8 in. | X | 1ft. 8 in. | 34 | |
6 ft. 0 in. | X | 1 ft. 0 in. | X | 1ft. 0in. | 6 | |
8 ft. 6 in. | X | 1 ft. 8 in. | X | 1ft. 8 in. | 23 | |
25 ft. 0 in. | X | 1 ft. 8 in. | X | 1ft. 8 in. | 70 | |
6 ft. 0 in. | X | 1 ft. 8 in. | X | 1ft. 8 in. | 17 | |
23ft. 0in. | X | 1 ft. 8 in. | X | 1 ft. 8 in. | 64 | |
14ft. 0in. | X | 2 ft. 0 in. | X | 1ft. 0in. | 42 | |
Total | , 363 cu. ft. | |||||
363 cu. ft.÷ 25 = 14 1/2 perches of underpinning. | ||||||
Summary of Stonework - | |
12 perches of drywall,at$3.00 ... | $ 36.00 |
Carried forward | $ 36.00 |
Brought forward | $ 30.00 |
101 perches of mortar walls, at $4.25. | 429.25 |
14 1/2 perches of underpinning, at $6.50. | 94.25 |
Total cost of Stonework, | $559.50 |
