Of Thread Controllers 598 6d

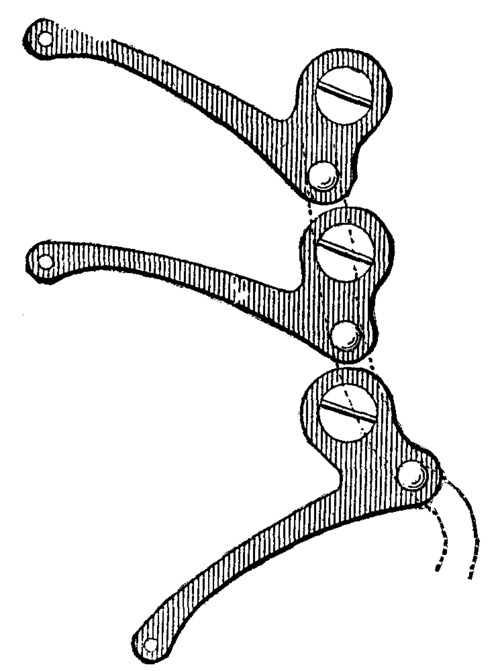

FIG. 4.

Wilson, in the Wheeler-Wilson machine, had neither of those arrangements, but depended upon the succeeding revolution of the hook to draw up the slack of the preceding stitch. These devices were all far from perfect in their operation, chiefly because they commenced to act too soon. In each case the pulling up commenced with the rise of the needle, and the tightening operation subjected the thread to all the friction of rubbing its way through both needle eye and fabric. Now, an ideal take-up should not commence to act until the needle has ascended above the fabric, and one of the most important steps toward perfection in sewing machines was undoubtedly attained when such a device was actually invented. In effecting this, the means employed consists of a differential or variable cam, rotating with the main shaft. This controls the movements of a lever called the take-up, pivoted to the machine (Fig. 4). Not only has it been possible by these means to control the tightening of the stitch, but the paying out of the thread for enveloping the shuttle also, and both the paying out and pulling up are actually effected after the needle has ascended above the cloth.

The introduction of the positive take-up, the first forms of which appeared in 1872, not only simplifies the movements of the shuttle or hook, but for the first time renders the making of the lock stitch possible, while the needle has a direct up and down motion. Thus, we find that in most of the swiftest sewing machines, the needle bar is actuated by a simple crank pin or eccentric, there being no loop dip or pause in its motion.

The diagram shows a positive take-up in three positions - at the commencement of the needle's descent, during the detention of the loop by the beak, and during the casting off of the loop. The dotted lines indicate the path of the cam to produce these positions. The intermittent movements of the take-up have thus led to the abandonment of variable motions in both needle and shuttle, and particularly so in oscillating shuttle machines.

Wheeler & Wilson's Variable Motion. - But while the simple and direct movement is now preferred for shuttles, both oscillating and rotary, the revolving hooks of Wheeler & Wilson are provided with a differential motion, and the way it is effected appears sufficiently interesting to call for a short description. When the rotating hook has seized the loop of thread, it makes half a revolution with great rapidity; its speed then slackens, and becomes very slow for the remaining half a revolution. In the first machines introduced, this was effected by means of a revolving disk, having slots in which worked pins attached to the main shaft and hook shaft respectively.

Of Thread Controllers 598 7a

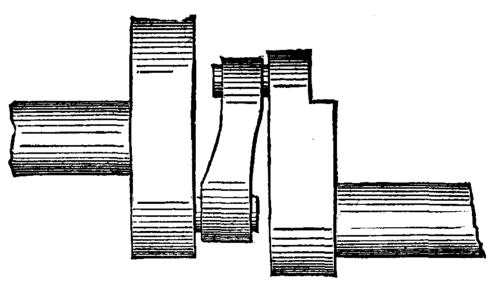

FIG. 5.

In the later and more improved machines, the variable device is much simplified (Fig. 5). The main shaft, leading to the rotating hook, is separated into two portions, the axis of one portion being placed above that of the other. A crank pin is attached to each, and these pins are connected together by a simple link. An examination of the device itself shows that, while the motion of the main shaft portion is uniform, that of the hook shaft is alternately accelerated and retarded.

The picture on the screen gives a general view of the No. 10 D machine, in which these motions are embodied, and showing the position of the positive take-up affected by those motions, a position which is preferred for very high speeds in this machine, especially for threads possessing little elasticity.

Motions Of The Feeder

The speed attained by the fastest sewing machines is due more to the reduction and simplification of the movements than to any other improvement. Heavy concessions and reactions have been replaced by direct motions, and cams have been excluded as much as possible. Mr. A.B. Wilson's famous invention of the four motion feeder depended upon both gravity and a reacting spring for two motions. Singer improved upon it by making three of the motions positive, a spring being used for the drop. But a really positive four motion feeder was long sought by inventors.

Hitherto the reaction of the feeder - that is, its descent and recession - was generally attained by means of a spring. The drop and ascent are now effected by means of a separate eccentric in Singer's machine. Uncertainty of action in the feed, once a cause of much inconvenience, may now be said to be overcome. A peculiarity of the four motion feeder in Wheeler & Wilson's machine is an arrangement enabling the operator to feed in either direction at will.

Not less worthy of note are improvements that have been made in wheel feeders. The wheel feed was originally much used for cloth sewing machines, especially in Singer's system. But in recent years the drop or four motion feeder has entirely superseded it for such purposes. The wheel feed still holds its own, however, for sewing leather, especially in the "closing" of boot uppers, in this country. Singer's original wheel feeder was actuated by a friction shoe riding upon the flange of the wheel. The friction grip, however, had certain faults, owing to the tendency of the shoe to slip when the surfaces became covered with oil.

Motions Of The Feeder 598 7b

FIG. 6.

A later form of Howe's machine used a pair of angular clutches, embracing the flange of the wheel. In both Singer's and Wheeler & Wilson's latest styles of machines this arrangement is simplified and improved by the use of a single angle clutch, which is found to work even when the surfaces are freely oiled (Fig. 6).

Any motion of the free extremity of the lever upon which the biting clutch is formed binds the latter upon the flange of the wheel, which then advances so long as the lever continues to move in that direction. When the stitch is completed, the clutch is allowed to recede, and is pulled back by a reacting spring. The bite of the clutch is given by the two opposite corners.
