A running trap with hand-hole and cover, and one with two hub-vents are illustrated in Figs. 75 and 76.

Fig. 75.

Fig. 76.

A full S-trap, a three-quarter. S-trap and a half S-trap, are illustrated in Figs. 77, 78 and 79.

An S-trap, a three-quarter S-trap and a half

Fig. 77.

Fig. 78.

Fig. 79.

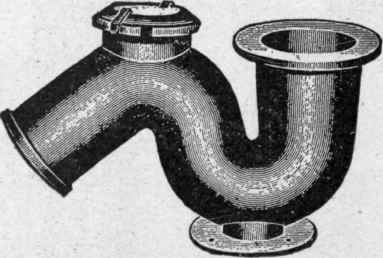

S-trap, all with hand-hole and cover, are shown in Figs. 80, 81 and 82.

Fig. 80.

Fig. 81.

A full S-trap, a three-quarter S-trap and a half S-trap all with top vent are shown in Figs. 83, 8-4 and 85.

Pig. 82.

Fig. 83.

A plain running trap and a running trap with hub-vent are illustrated in Figs. 86 and 87. Lead Traps. Traps with full S, three-quarter

Fig. 84.

Fig. 85.

S, half S or P and running bends are shown in Fig. 88, both plain and vented.

Fig. 86.

Fig. 87.

Lead Traps

Plain

Vented

Pig. 88.

EXTRA LONG - Plain

EXTRA LONG - Vented

FULL S TRAPS

Fig. 89.

DRAINAGE FITTINGS

9?.

Extra long plain and vented S-traps are also shown in Fig. 89.

Fig. 90.

Fig. 91.

Fig 92.

Fig. 93.
