66. Quoins are the corner stones of a wall, and are often dressed differently from the other stones, in order to make them more prominent, as, for example, those shown in Fig. 25. Quoin stones should always be equal in size to the largest stone used in the wall; otherwise, the effect of strength and solidity that they are intended to produce will be lost. Sometimes the quoins in a rubble-stone wall are built of brick, as shown in Fig. 21.

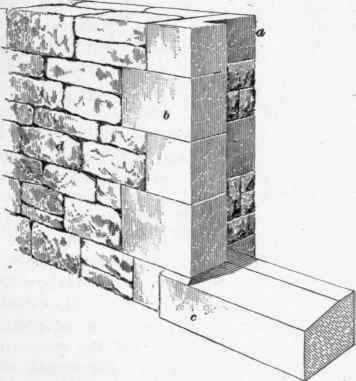

67. The stones in the sides of a door or window opening are called jamb stones. The alternate ones should extend through the width of the wall, to insure a good bond. Fig. 31 represents cut-stone jambs in a rubble wall; a shows the jamb stones bonding into the wall transversely; b, those bonding longitudinally; c, the stone window sill; and d, the rubble wall.

Quoins And Jambs 158

Fig. 31.

68. Occasionally, when stone piers or pilasters are built on the outside of a building, the windows are recessed so that the sills and lintels will not have as great a projection. This is shown in Fig. 32, in which a shows the lintel; b, the sash; and c, one of the jamb stones.

Jambs and quoins are often finished with a draft, or angle line, especially when the softer stones are used. Fig. 33

Quoins And Jambs 159

Fig. 32.

Quoins And Jambs 160

Fig. 33.

shows this method of finishing; a indicates the quoin or jamb stone, as may be the case; b, the angle draft; and c, the broken ashlar wall.
