Plate I

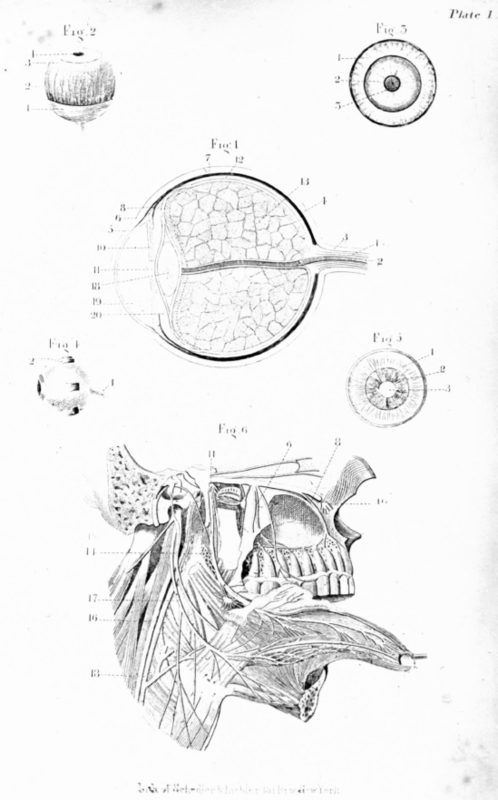

Fig. 1. A vertical section of the eye. The optic nerve, 1. - The central artery of the retina, 2. - Envelope or sheath of the optic nerve, 3. - The sclerotic or white coat of the eye, 4. - Transparent cornea, 5. - Union of the sclerotic with the cornea, 6. - Choroid coat, 7. - Ciliary ligament, 8. - Iris, 10. - Pupil, 11. - Retina, 12. - Vitreous humor, 13. - Crystalline lens, 18. - The anterior chamber of the eye filled with aqueous humor, 19. - The posterior chamber also filled with aqueous humor, 20.

Plate I 2Plate I 3

Fig. 2. 1. The sclerotic coat at the insertion of the optic nerve. - 2. The sclerotic coat has been dissected leaving to view the choroid coat and the nerves which traverse it, and 3. represents their termination in the ciliary ligament. - 4. The iris.

Fig. 3. 1. Cilliary ligament. 2. Iris. 3. Pupil.

Fig. 4. - The Ball of the Eye. 1. Optic nerve. 2. Tendinous attachment of the muscles.

Fig. 5. 1. Ciliary processes. 2. Posterior face of the Iris. 3. Pupil.

Fig. 6. - A general View of the Nerves of the Face, Teeth, and Tongue. 6. 8. Represent branches of the dental nerves, and the passage of the filaments into the teeth. 10. Division of the superior maxillary branch into nerves communicating with the orbit of the eye. 11. Branch of the inferior maxillary branch of the fifth pair. 14. The lingual nerve or nerve of the tongue anastimosing also with other nerves. 16. Pneumo-gastric nerve. 18. Internal carotid artery. 17. Hypoglossal nerve. Branches of other nerves represented in the cut, it will be unnecessary to point out here.

Plate 2

Fig. 1. Is a back view of the human skeleton. a. Represents the collar bone or clavicle. F. The shoulder-blade or scapula. b. b. The shoulder-joint. G. The large bone of the arm or humerus. J. H. The small bones of the arm or the ulna and radius. g.M.M. The pelvis. D. The ribs. N.N. The femur or large bone of the leg. Q.P. The small bones of the leg or the tibia and fibula.

Fig. 2. Represents the bones of the head. 4. Frontal bone of forehead. 3. Parietal, or side bones of the head. 5. Temporal bone. 6. Malar or cheek bone. 7. Bones forming the bridge of the nose. 8. Upper jawbone. 9. Lower jaw-bone. 21*

Fig. 3. - The Spinal Column. 1.2.3.4. Spinous processes. 5. Cervical vertebrae. 6. Dorsal vertebrae. 7. Lumbar vertebrae. 8. The two false vertebrae or the sacrum and coccyx.

Fig. 4. - The Chest. The ribs forming the chest are here represented, and at fig. 2 their union by cartilages with the sternum in front.

Fig. 6. - The Bones of the Pelvis. 5. The sacrum at its union with the lumbar vertebrae. 3. The coccyx. 7. 8. The innominata or hip-bone3. 4. The ascetabulum or the cavity into which is inserted the head of the femur forming a ball and socket joint. 9. 10. The seat-bones. 6. The pubis.

Fig. 7. - A View of the Bones of the Hand. 1. Carpal or wrist-bones. 2. Metacarpal-bones. 3.4.5. Phalanges of the fingers.

Fig. 9. - A View of the Bones of the Foot. 1. Tarsal or ankle-bones. 2. Metatarsal. 3. 4. 5. Phalanges of the foot

Plate 3

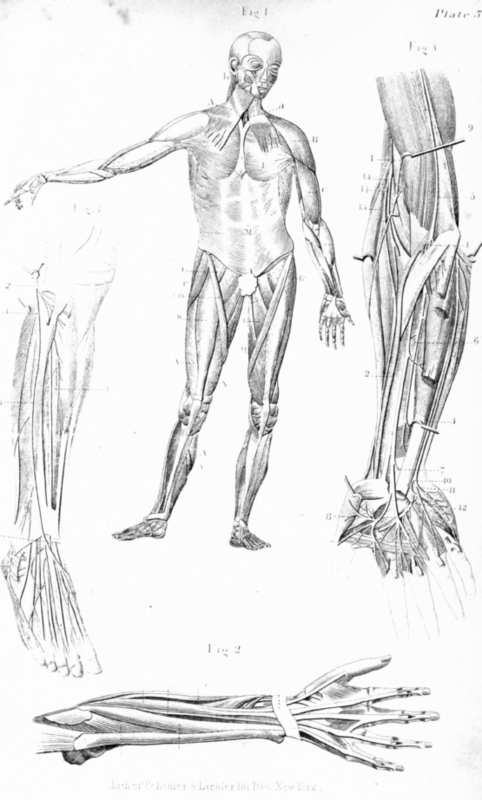

Fig. 1. A front View of the Muscles of the Body.

A. a broad muscle helping to depress the angle of the mouth and also when the mouth is shut draws up the skin with which it is connected below the lower jaw. B. Deltoid muscle, used to raise the arm and assist it in all its motions except depressing it. C. Muscle. used to bend the forearm. I. Moves the arm forward and upward toward the sternum. R. Assists in expiration and occasionally in discharging the contents of the stomach and belly. 0. Crosses the legs in the manner tailors are used to sit. P. Draws the legs and thigh outward. Q. Helps to bend the leg and assists in bringing it and the thigh inward. T. Pulls the thigh inward. V.W.X. Help to extend the leg. Y. Extends the foot.

Fig. 2. Represents the extensors of the hand and forearm. The tendinous extremities are seen passing under the ligament at the root of the thumb and firmly bound by ligaments to the fingers. They serve to extend the hand and forearm. The flexors placed on the opposite side of the hand not seen in the cut serve to flex the hand and arm, and other muscles in connection with these and the extensors serve to rotate the hand and arm.

Fig. 3Fig. 4

Fig. 3. Represents in addition to the muscles on the front of the hand and arm the nerves and arteries. 1. Brachial artery. 2. Radial artery. 3. Cubital artery. 4. 5. 6. 7.8. 9.10.11.12.13.14.15. The nerves of the arms and hand and their various divisions and branches.

Fig. 4. Represents the muscles of the anterior portion of the leg and foot together with the arteries and nerves. The muscles of the leg may be seen passing under the broad ligament at the ankle, and attached by their tendinous extremity to the foot. These serve to flex the foot, and also to extend and rotate the leg. 1. Tibial artery. 2. The great sciatic nerve which may be seen dividing into various branches along the leg and foot.

Plate 4

1. The stomach. 4. Cardiac orifice. 5. Pyloric orifice. 6. Duodenum. 7. Pancreas. 11. Large lobe of the liver. 15. Gall bladder. 16. Duct leading from the gall-bladder to the duodenum. 17. Trunk of the portal vein. 18. Hepatic artery.

1. Circumvolutions of the small intestines. 2. Coecum receiving the insertion of the small intestines, and presenting at a the appendix vermicularis. The colon or large intestine is seen passing around the smaller ones. 3. Ascending colon. 4. Transverse colon. 5. Descending colon. 7. Commencement of the rectum.

Plate 5

Fig. 1. Represents the heart, the great aorta passing off from it, and its division into arteries which supply the head and upper extremities with blood, also some of the muscles of the head and face. 1. The heart 2. 3. Arteries of the heart. 4. Pulmonary artery. 5. The great aorta. 6. The brachial cephalic trunk. 7. The carotid artery branching off from the brachial cephalic on the left side. 9. Division of the brachial cephalic into the subclavian and carotid. 10. Division of the primitive carotid into the internal and external carotid. 11. Thyroid artery. 12. Lingual artery. 13. Facial artery. 16. 17. Arteries of the lips. 26. Vertebral artery. In the face may be seen the muscles by which the various movements of the face may be performed, giving to it its varied expressions of life and animation, of joy and sorrow.

Fig. 2. The lungs, heart with its arteries and veins, and the windpipe passing to the lungs. 1. Larynx. 2. Trachea. 3. 4. Lungs. 5. Heart.

Fig. 3. The windpipe is seen with its divisions into larynx, trachea and bronchia. 3. 10. 11. Bifurcation of the bronchia, each branch giving off other branches, which divide into almost innumerable air-cells.

Plate 5 6
